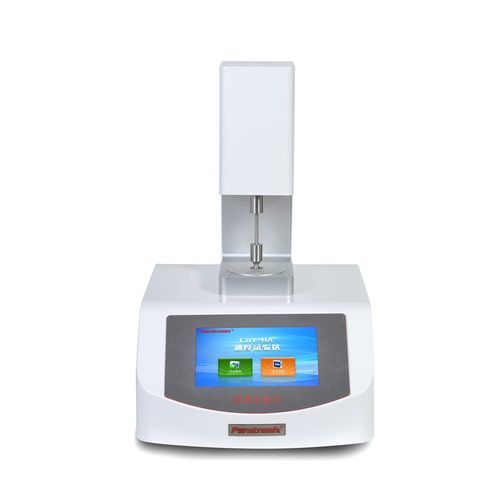

Textile thickness gauge PTT-03Afilmpaperfor paper
Add to favorites
Compare this product
Characteristics
- Applications
- film, paper, textile, for sheet materials, for paper
- Type
- benchtop
- Technology
- mechanical
- Other characteristics
- precision, high-resolution, quality control, with graphic display
- Measuring range
Min.: 0 mm
(0 in)Max.: 12 mm
(0.47 in)- Measurement accuracy
0.5 µm
- Resolution
0.1 µm
- Weight
15 kg
(33.069 lb)
Description
Product Introduction
PTT-03A Thickness Tester is a high-precision instrument using a mechanical contact method. It is designed to measure the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics and solid insulation materials, providing reliable results for laboratory and production quality control.
Product Features
Test Standards
Technical Specifications
Item — Parameter
Measuring range — 0～2 mm (standard), 0～6 mm, 0～12 mm (optional)
Resolution — 0.1 μm
Test Speed — 1～25 times/min
Test Accuracy — ±＜0.5 μm
Test Pressure — 17.5±1 kPa (film); 100±1 kPa (paper); other pressures customizable
Contact Area — 50 mm2 (film); 200 mm2 (paper)
Power Supply — AC220V 50Hz / AC120V 60Hz
Instrument Dimension — 300 mm (L) × 400 mm (W) × 435 mm (H)
Net Weight — 15 Kg
Configuration
Characteristics / technical specifications
PTT-03A Thickness Tester is a high-precision instrument using a mechanical contact method. It is designed to measure the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics and solid insulation materials, providing reliable results for laboratory and production quality control.
Product Features
- Imported high-speed, high-precision sampling chip to ensure measurement accuracy
- Built-in micro printer for immediate data printing
- 7-inch HD color LCD for real-time display of test data
- Standardized contact area and measurement pressure; supports non-standard customization
- Standard RS232 interface for external connection and data transmission
- Includes standard gauge block for calibration
Test Standards
- ISO 4593
- ISO 534
- ISO 3034
- ASTM D374
- ASTM D1777
- TAPPI T411
- JIS K6250
- JIS K6783
- JIS Z1702
Technical Specifications
Item — Parameter
Measuring range — 0～2 mm (standard), 0～6 mm, 0～12 mm (optional)
Resolution — 0.1 μm
Test Speed — 1～25 times/min
Test Accuracy — ±＜0.5 μm
Test Pressure — 17.5±1 kPa (film); 100±1 kPa (paper); other pressures customizable
Contact Area — 50 mm2 (film); 200 mm2 (paper)
Power Supply — AC220V 50Hz / AC120V 60Hz
Instrument Dimension — 300 mm (L) × 400 mm (W) × 435 mm (H)
Net Weight — 15 Kg
Configuration
- Standard configuration: main instrument, standard gauge block
- Optional: non-standard gauge block
Characteristics / technical specifications
- Model: PTT-03A
- Measurement method: Mechanical contact
- Applicable materials: Films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, solid insulation materials
- Display: 7-inch HD color LCD
- Printer: Built-in micro printer
- Interface: Standard RS232 for data transmission
- Calibration: Standard gauge block included
- Resolution: 0.1 μm
- Measuring ranges available: 0–2 mm (standard), 0–6 mm, 0–12 mm (optional)
- Test speed: 1–25 times/min
- Test accuracy: ±＜0.5 μm
- Typical test pressures: 17.5±1 kPa (film), 100±1 kPa (paper)
- Contact areas: 50 mm2 (film), 200 mm2 (paper)
- Power supply options: AC220V 50Hz or AC120V 60Hz
- Dimensions (L×W×H): 300 × 400 × 435 mm
- Net weight: 15 Kg
