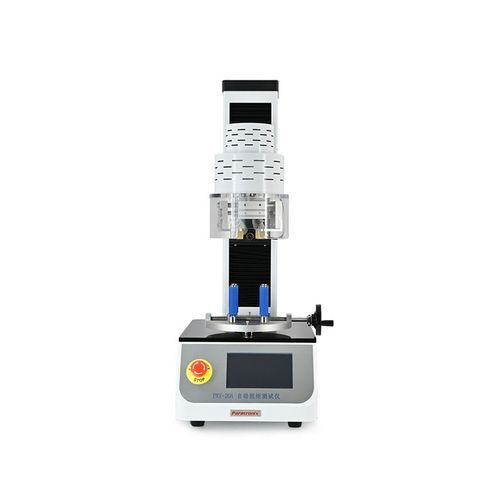

Bench-top torque meter PNY-20A

for bottle closuresfor bottle capsfor loosening torque

Product introduction
PNY-20A automatic torque tester is designed for testing application torque and removal torque of bottle caps, including penicillin vials, beverage bottles, drinking-water bottles and oil drums. The PNY-20A automatically measures torque by rotating clockwise and counterclockwise and records the maximum torque value. It is widely used in quality control laboratories and in the food, pharmaceutical and cosmetics industries.

Features

• Microcomputer-controlled automatic operation with a user-friendly interface
• Maximum-value retention function
• Data storage up to 1000 test groups
• High-precision torque sensor with 0.5%FS accuracy
• High-resolution LCD display
• Built-in micro printer for data printout
• Integrated calibration program for easy calibration
• Three-level user permission management

Technical parameters
Measuring range: 0-5.00 N·m (custom ranges available)
Units: N·m / kg·cm / lb·in
Measurement accuracy: Level 0.5
Test mode: Application torque & removal torque
Clamping size: 3 mm - 180 mm
Data storage: 1000 groups (group statistics and printing)
Data transmission: Optional PC connection for control, data storage and report printing
User management: Password protection and three-level permission management
Instrument dimensions: 470 (L) x 440 (W) x 800 (H) mm
Weight: 40 kg
Power supply: AC220V ±22V, 50Hz (customizable)
Standard configuration: Main unit, power cord, printing paper
Optional configuration: Special fixtures and PC software (customizable)

Standards
ASTM D 2063, ASTM D 3198, ASTM D 3474

Characteristics / technical specifications

• Model: PNY-20A
• Measuring range: 0-5.00 N·m (customizable)
• Units: N·m, kg·cm, lb·in
• Accuracy: 0.5%FS
• Test modes: Application torque and removal torque
• Clamping size: 3 mm - 180 mm
• Data storage: Up to 1000 test groups
• Data transmission: Optional PC connection for operation, storage and report printing
• Dimensions: 470 x 440 x 800 mm (L x W x H)
• Weight: 40 kg
• Power supply: AC220V ±22V, 50Hz (customizable)
• Included: Main unit, power cord, printing paper
• Optional: Special fixtures and PC software (customizable)
