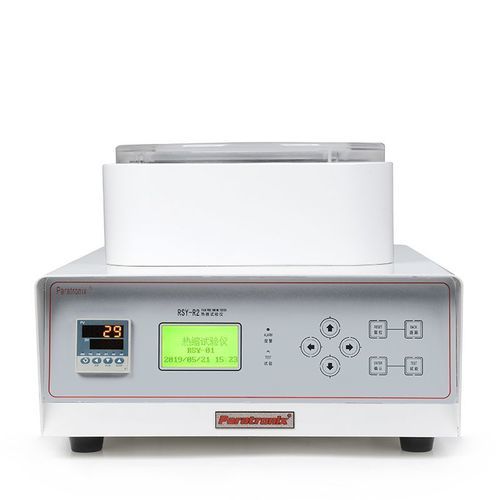

Temperature testing machine RSY-R2

thermal shrinkageautomaticcomputer-controlled

Product Introduction
RSY-R2 Thermal Shrinkage Tester is designed to determine the heat shrinkage ratio of films, heat-shrinkable tubing, hard PVC films for tablets and back-sheets in a liquid medium at controlled temperatures.

Product Features

• Microcomputer control with PVC menu-type operation panel
• User-friendly design for straightforward operation
• High-precision circuit processing for accurate and reliable testing
• Liquid heating in an oil bath provides a wide and stable temperature range
• Digital P.I.D temperature control for fast stabilization and minimal fluctuation
• Automatic timing to ensure consistent test durations
• Standard clamp with wire mesh support for secure sample placement
• Compact and lightweight construction for easy handling in laboratory or production environments

Test Standards
The instrument complies with international standards including ASTM D2732.

Technical Specifications
Item - Parameter
Sample Size - ≤140mm×140mm
Temperature Range - Room temperature ~ 200℃
Temperature Control Accuracy - ±0.3 ℃
Heating Medium - Oil bath
Instrument Dimension - 360 (L) mm x 440 (W) mm x 320 (H) mm
Weight - 14 Kg
Operating Temperature - 23 ℃ ± 2 ℃
Relative Humidity - 50% ± 5%
Power Supply - AC 220V 50Hz

Characteristics / Technical Specifications

• Sample Size: ≤140mm×140mm
• Temperature Range: Room temperature ~ 200℃
• Temperature Control Accuracy: ±0.3 ℃
• Heating Medium: Oil bath
• Instrument Dimension: 360 (L) mm x 440 (W) mm x 320 (H) mm
• Weight: 14 Kg
• Operating Temperature: 23 ℃ ± 2 ℃
• Relative Humidity: 50% ± 5%
• Power Supply: AC 220V 50Hz
