Vacuum leak tester LT-02P
vacuum chamberleakagefor packaging

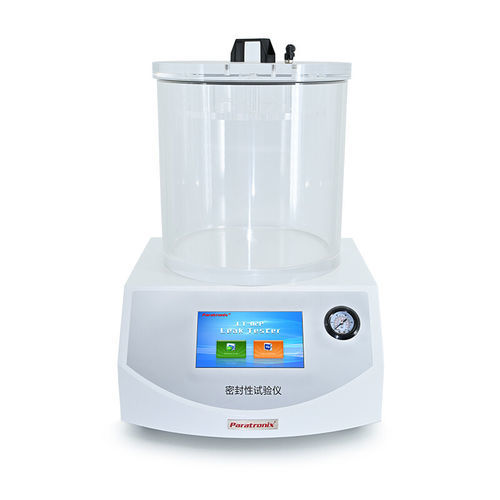

Vacuum leak tester - LT-02P - Shandong Puchuang Industrial Technology Co., Ltd. - vacuum chamber / leakage / for packaging
Vacuum leak tester - LT-02P - Shandong Puchuang Industrial Technology Co., Ltd. - vacuum chamber / leakage / for packaging
Vacuum leak tester - LT-02P - Shandong Puchuang Industrial Technology Co., Ltd. - vacuum chamber / leakage / for packaging - image - 2
Vacuum leak tester - LT-02P - Shandong Puchuang Industrial Technology Co., Ltd. - vacuum chamber / leakage / for packaging - image - 3
Add to favorites
Compare this product
Go to the Shandong Puchuang Industrial Technology Co., Ltd. website for more information

Characteristics

Type
vacuum, vacuum chamber, leakage
Applications
for packaging
Other characteristics
automatic, color display, tabletop

Description

Product Introduction
LT-02P Leak Tester performs leakage and seal integrity tests on flexible packages used in food, pharmaceutical, daily chemical, electronics and related industries. It enables quantitative comparison of sealing processes and seal performance, and can verify seal integrity after drop and compression tests.

Product features
  • Fully automatic test cycle; one-click start and finish
  • Built-in high-precision sensor with fast response
  • Two test modes: single-point and incremental
  • Multiple parameter presets per mode for quick selection
  • Automatic accumulation of test groups and test count
  • Storage for up to 500 test results; printing function optional
  • Automatic vacuum holding and back-blowing unloading
  • Extra-thick plexiglass vacuum chamber
  • Simple operation and maintenance


Technical Specification
Item - Specification
Vacuum Degree - 0~-90 Kpa
Response Speed - <5 ms
Resolution - 0.01 Kpa
Sensor Precision - ≤0.5
Test Mode - Single point mode, increment mode
Screen - 7-inch touch screen
Pressure Range - 0.2-0.7 Mpa
Port Size - Φ6
Pressure holding time - 0-99999s
Vacuum Chamber (other size customized) - Φ270 mm x 210 mm (H), Φ360 mm x 585 mm (H), Φ460 mm x 330 mm (H)
Instrument Dimension - 420 (L) X 300 (B) X 165 (H) mm
Air Source - Compressed air (supplied by user)
Printer (optional) - Needle type

Standards
  • ASTM D3078
  • YBB00052005
  • GB/T 15171
  • GB/T 27728-2011
  • YBB00122002


Application
Suitable for leakage and seal integrity testing of flexible packages in food, wipes, medical supplies, electronic components, stationery and other industrial products. Also used to evaluate seal performance after drop and compression testing.

Technical characteristics / specifications
  • Vacuum Degree: 0~-90 Kpa
  • Response Speed: <5 ms
  • Resolution: 0.01 Kpa
  • Sensor Precision: ≤0.5
  • Test Mode: Single point mode, increment mode
  • Screen: 7-inch touch screen
  • Pressure Range: 0.2-0.7 Mpa
  • Port Size: Φ6
  • Pressure holding time: 0-99999s
  • Vacuum Chamber sizes (examples): Φ270 mm x 210 mm (H); Φ360 mm x 585 mm (H); Φ460 mm x 330 mm (H)
  • Instrument Dimension: 420 (L) X 300 (B) X 165 (H) mm
  • Air Source: Compressed air (supplied by user)
  • Printer (optional): Needle type
