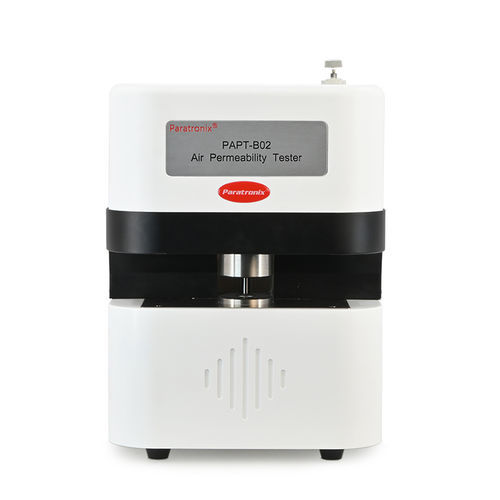

Air-operated permeameter PAPT-B02

Product Introduction
PAPT-B02 Air Permeability Tester is used to test the air permeability of polymer materials, films, paper and paperboard by the Bendtsen method (Gurley or Schober methods optional).

Features

• Three test methods available: Gurley, Schober and Bendtsen.
• Adjustable pressure difference 0–3 kPa with 0.01 kPa accuracy to meet requirements of all methods.
• 1 L test volume compliant with method requirements.
• Interchangeable masks for test areas 10.0 cm2 and 6.42 cm2.
• Built-in temperature and humidity sensor for real-time chamber monitoring.
• Leakage rate ≤ 1.0 ml/h.
• Dual-mode control (manual/electronic); computer software optional.

Technical Specification
Item — Parameter
Measuring Range — 0.01-2.5 um/(Pa.s)
Resolution — 0.001 um/(Pa.s)
Permeation Rate — 0.01-120 ml/min (customization available)
Pressure Difference/Accuracy — 0-3 kPa / ±0.01 kPa (customization available)
Valid Pressure Difference — Gurley: 1.21 kPa; Bendtsen: 1.47 kPa ±0.02 kPa; Schober: 1.00 kPa ±0.01 kPa / 2.50 ±0.01 kPa (air flow < 0.13 ml/L)
Test Area — Bendtsen: 50×50 mm Valid area: 10.0 ±0.2 cm2; Schober: 60×100 mm Valid area: 10.0 ±0.2 cm2; Gurley: 50×50 mm Valid area: 6.42 cm2
Test Time — 1-999999 s; Accuracy: 0.1 s
Sample Conditioning — A. Pretreatment: <40°C, 10-35% RH, stand 24 h; B. Mass difference over 1 hour ≤ 0.25% of total mass
Instrument Dimension — 420 × 300 × 165 mm (L×W×H)
Power Supply — 220 V/50 Hz, 100 W
Weight — 15 kg

Testing Principle

• Bendtsen: Under a constant pressure difference of 1.47 kPa, record the gas flow through the test surface after clamping for 5 seconds.
• Schober: Under a constant pressure difference of 1.00 kPa ±0.01 kPa or 2.50 ±0.01 kPa, select an appropriate test duration and measure the gas flow through the sample by the test volume.
• Gurley: Under a constant pressure difference of 1.23 kPa, measure the time taken for 100 ml of gas to pass through.

Test Standard
ISO 5356

Configuration

• Standard configuration: Main instrument, power cord
• Optional: Computer software
• Note: Air source shall be prepared by the user

Characteristics / technical specifications

• Model: PAPT-B02
• Measuring Range: 0.01-2.5 um/(Pa.s)
• Resolution: 0.001 um/(Pa.s)
• Permeation Rate: 0.01-120 ml/min (customizable)
• Pressure Difference Range: 0-3 kPa; Accuracy: ±0.01 kPa
• Valid Pressure Differences: Gurley 1.21 kPa; Bendtsen 1.47 kPa ±0.02 kPa; Schober 1.00 kPa ±0.01 kPa or 2.50 ±0.01 kPa
• Test Areas: Bendtsen 50×50 mm (10.0 ±0.2 cm2); Schober 60×100 mm (10.0 ±0.2 cm2); Gurley 50×50 mm (6.42 cm2)
• Test Time Range: 1–999999 s; Accuracy 0.1 s
• Sample Conditioning: <40°C, 10–35% RH, stand 24 h; mass change ≤0.25% over 1 hour
• Instrument Size: 420 × 300 × 165 mm
• Power Supply: 220 V/50 Hz, 100 W
• Weight: 15 kg
