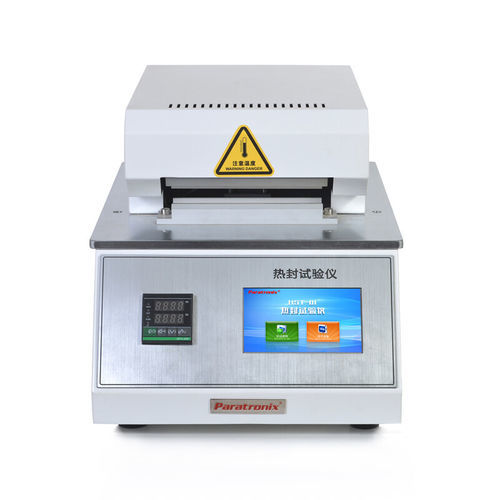

Heat seal tester HST-01B

for packagingfor filmfor paper

Product Introduction
HST-01B Heat Seal Tester is a laboratory instrument designed to determine optimal heat-sealing parameters — dwell time, sealing pressure and sealing temperature — for plastic films, flexible composite films, plastic-coated paper and other heat-sealable materials.

Product Features

• Built-in microcomputer control with a user-friendly interface
• 6-inch high-definition color LCD touch screen for direct parameter input
• Digital P.I.D temperature control for fast setpoint reach and reduced temperature fluctuation
• Patented sealing-jaw design for uniform heating across the sealing surface
• Manual start or footswitch operation to enhance operator safety

Test Standards
The instrument complies with multiple international standards, including ASTM F2029.

Technical Specifications

• Heat Sealing Temperature: Room Temperature–300℃
• Heat Sealing Pressure: 0–700 kPa
• Dwell Time: 0.1–999.9 s
• Temperature Control Accuracy: ±0.2℃
• Temperature Uniformity: ±1℃
• Heating Mode: One-side heating
• Heat Sealing Area: 150 mm × 10 mm
• Power Supply: AC 220 V 50 Hz / AC 120 V 60 Hz
• Air Source: 0.7 MPa (provided by user)
• Port Size: Ø6 mm PU tubing
• Dimensions: 547 mm (L) × 200 mm (W) × 390 mm (H)
• Net Weight: 20 kg

Standard & Optional Accessories

• Standard: Main instrument, gas pipeline, power cord
• Optional: Micro printer, No.15 sampling knife, silicone rubber plate, high-temperature solder cloth
