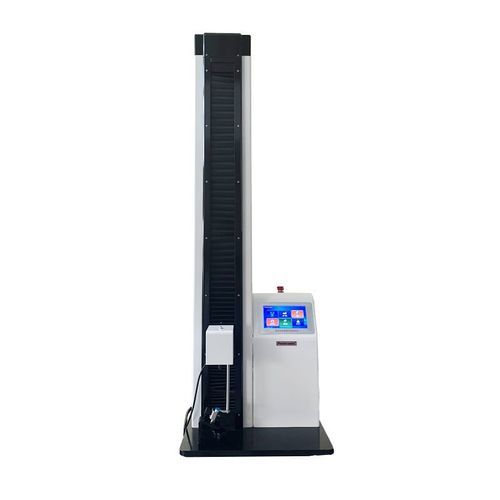

Tensile testing machine PMT-05

for burst testingpressurepeel force

Introduction
The PMT-05 medical packaging physical performance tester is a multifunctional integrated instrument designed to evaluate the physical properties of medical packaging materials. It is suitable for testing body tightness (including prefilled syringes), opening force of aluminum-plastic caps, ampoule breaking force, puncture force of rubber stoppers, needle rigidity, needle-holder retention, aluminum foil stretching, fixed force and positioning shift, piston sliding performance and other related tests for injection and infusion packaging components.

Features

• Imported microcomputer control with open architecture and user-friendly human‑machine interface.
• Multiple selectable operation modes including fixed-force and positioning modes to simplify testing.
• Precision screw drive with stainless-steel guide rails for stable motion.
• Imported high-precision force sensor with measurement accuracy Level 0.5.
• Precision differential motor drive for stable transmission, low noise and accurate positioning.
• LCD display (English) with automatic measurement and test-data statistics.
• High-speed micro printer for fast, low-noise output without ribbon replacement.
• Built-in calibration program to facilitate metrology and third-party calibration.
• HD color display for curve visualization; optional PC software for two-way operation.

Technical parameters
Indicator - Parameter
Measuring range: 5 kg, 25 kg, 50 kg (selectable)
Measuring unit: N, kg, lb
Measuring precision: Level 0.5
Test stroke: 600 mm
Test modes: opening force, break force, puncture force, pull/pressure test, needle rigidity, fixed force, positioning shift, peeling force, piston sliding, body tightness, catheter guide-wire friction
Test speed: 1–600 mm/min (stepless)
Overall dimensions: 600 (L) × 600 (W) × 1400 (H) mm
Weight: approx. 90 kg
Power: AC 220V±22V, 50Hz
Standard configuration: main unit, stretching fixture
Optional accessories: water temperature control system, opening/puncture/breaking/sliding fixtures, PC software, computer

Standards
YBB00242004-2015, YBB00402003-2015, YBB00042005-2015, YBB00052005-2015, YBB00332004-2015, YBB00332002-2015, YBB00112004-2015, GB-14232.1-2004, GB-15811-2016, GB-15810-2001, GB/T-1962.1-2001, GB-2637-1995, ASTM D882

Test mode
The instrument supports multiple test modes including opening force, break force, puncture force, pull/pressure, needle rigidity, fixed force, positioning shift, peeling force, piston sliding, body tightness and catheter guide-wire friction tests.

Test interface
Equipped with an LCD that displays curves and text; supports connection to PC software for data processing and bidirectional control.

Specifications

• Measuring range: 5 kg / 25 kg / 50 kg (selectable)
• Units: N, kg, lb
• Precision: Level 0.5
• Test stroke: 600 mm
• Speed: 1–600 mm/min (stepless)
• Dimensions (L×W×H): 600×600×1400 mm
• Weight: ~90 kg
• Power supply: AC 220V±22V, 50Hz
• Standard equipment: main unit, stretching fixture
• Optional: temperature control system, specific test fixtures, PC software and computer
