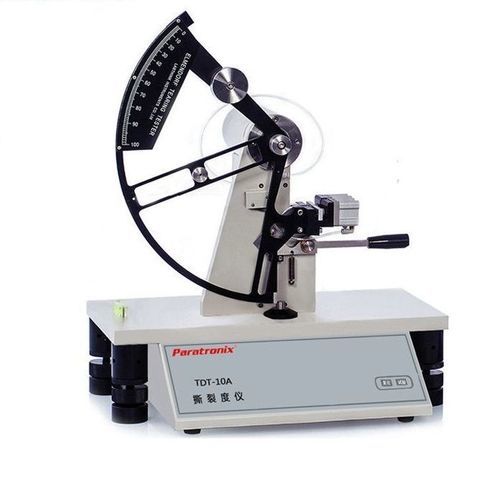

Resistance testing machine TDT-10Aautomaticfor filmfor textiles
Add to favorites
Compare this product
Characteristics
- Test type
- resistance
- Operating mode
- automatic
- Test material
- for textiles, for non-wovens, for paper, for film
- Technology
- pneumatic
- Other characteristics
- pendulum, roller
Description
Product Introduction
TDT-10A Tearing Tester is suitable for testing tear resistance of film, sheet, soft PVC, PVDC, water-proof roll, woven material, polyester, paper, paperboard, textile and non-woven fabric, etc.
Product Features
Test Standards
Technical Specifications
TDT-10A Tearing Tester is suitable for testing tear resistance of film, sheet, soft PVC, PVDC, water-proof roll, woven material, polyester, paper, paperboard, textile and non-woven fabric, etc.
Product Features
- Computer controlled, automatic testing operation, easy to operate
- Pneumatic sample clamping and automatic pendulum release to reduce systematic error from manual operation
- Computer assisted adjustment system to ensure the instrument is always in the best test state
- Can be equipped with multiple groups of pendulum capacity to meet different test requirements
- Professional software supports the data output of various test units
- Standard RS232 interface for external access and data transmission
Test Standards
- ISO 6383-1-1983
- ISO 6383-2-1983
- ISO 1974
- ASTM D1922
- ASTM D1424
- ASTM D689
- TAPPI T414
Technical Specifications
- Pendulum Capacity — 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf
- Air Source Pressure — 0.6MPa (air source prepared by the user)
- Port Size — Φ4 mm polyurethane pipe
- Instrument Dimension — 480 mm (L) × 380 mm (W) × 560 mm (H)
- Power Supply — 220VAC 50Hz / 120VAC 60Hz
- Net Weight — 23.5 kg (including 200gf basic pendulum)
- Standard Configuration — Main instrument, 1 basic pendulum, 1 weight gain weight, 1 calibration weight, professional software, communication cable
- Optional — Basic pendulum: 200gf, 1600gf; Weight gain: 400gf, 800gf, 3200gf, 6400gf; Calibration weights: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf; Computer, sampling knife
