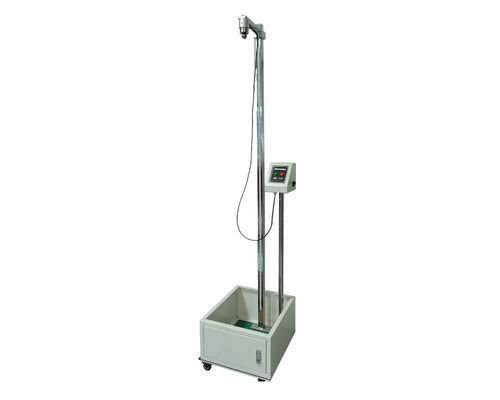

Drop tester FBT-01

Product introduction
The FBT-01 falling ball impact tester is designed to evaluate instantaneous impact resistance of plastics, plexiglass, building materials, ceramics, coatings and similar specimens by dropping steel balls from controlled heights.

Product details
The tester enables repeatable impact tests using selectable steel ball masses and an adjustable drop height range. It is suitable for quality control and R&D environments where controlled, instantaneous impact energy needs to be applied to small-to-medium samples.

Parameters

• Steel ball weights: 112 g, 198 g, 225 g, 357 g, 533 g
• Drop height: 20–2000 mm
• Resolution: 0.1
• Drop height scale: minimum indication 1 cm
• Machine size: W400 × D450 × H2200 mm
• Machine weight: approx. 50 kg
• Power source: 1~, 220 V, 5 A or specified

Characteristics / technical specifications

• Model: FBT-01
• Test type: falling ball instantaneous impact
• Adjustable impact energy via selectable steel ball masses
• Wide drop height range for low to high energy impacts (20–2000 mm)
• Display resolution: 0.1; minimum scale indication: 1 cm
• Compact footprint: 400 mm (W) × 450 mm (D) × 2200 mm (H)
• Approximate weight: 50 kg
• Standard power supply: 220 V, 5 A (single phase) or as specified
