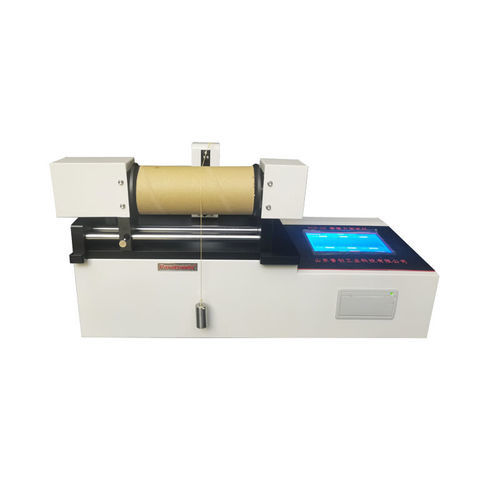

Friction testing tribometer PCF-03D

Introduction
PCF-03D friction tester is designed to measure friction of silk and paper rollers. It delivers stable rotational speed and real-time force acquisition via a high-performance CELTRON sensor. The instrument and its test programs support manufacturers and quality inspection bodies in producing accurate, repeatable friction evaluations.

Advantages

• Imported microcomputer control with open structure and intuitive human–machine interface for easy operation;
• Precision screw drive and stainless-steel guide rails to ensure instrument stability and durability;
• High-precision CELTRON force sensor (USA) with measurement accuracy better than 0.5;
• Display of maximum, minimum and average friction values;
• Precision differential motor drive for stable transmission, low noise and accurate positioning, improving repeatability of results;
• 65-million-color TFT LCD with real-time curve display, automatic measurement and statistical processing of test data;
• High-speed micro thermal printer for fast, low-noise output; no ribbon replacement required and easy paper-roll change;
• Built-in calibration program and support for third-party calibration;
• Compact design with complete functionality and straightforward operation.

Technical parameters
Item — Parameter
Test range — 0 to 30 N
Test accuracy — Level 0.5
Force resolution — 0.001 N
Test speed — 1–20 r/min
Velocity accuracy — ±1%
Clamping width — 50–250 mm
Clamping diameter — 70–85 mm
Mode of operation — HD LCD touch screen
Printing mode — Micro thermal printer
Sample weight — 100 g
Test time — 1–300 s
Overall dimension — 650(L)×290(W)×360(H) mm
Equipment weight — approx. 15 kg
Supply voltage — 220 V 50 Hz

Characteristics / technical specifications

• Test range: 0–30 N
• Test accuracy: Level 0.5
• Force resolution: 0.001 N
• Test speed: 1–20 r/min
• Velocity accuracy: ±1%
• Clamping width: 50–250 mm
• Clamping diameter: 70–85 mm
• Operation: HD LCD touch screen with real-time curve display
• Printing: Micro thermal printer
• Sample weight: 100 g
• Test time range: 1–300 s
• Overall dimensions: 650×290×360 mm (L×W×H)
• Equipment weight: approx. 15 kg
• Supply voltage: 220 V 50 Hz
