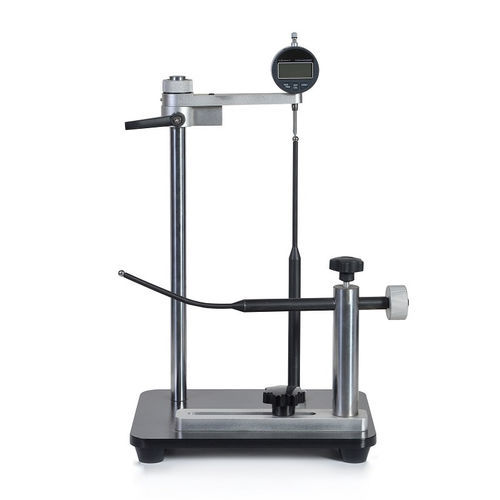

Plastic thickness gauge BTG-02glasswallaluminum
Add to favorites
Compare this product
Characteristics
- Applications
- wall, plastic, glass, aluminum, for glass bottles
- Type
- benchtop
- Technology
- mechanical
- Other characteristics
- precision, with external probe, high-resolution, quality control
- Measuring range
Min.: 0 mm
(0 in)Max.: 12.7 mm
(0.5 in)- Measurement width
Min.: 0 mm
(0 in)Max.: 150 mm
(5.9 in)- Maximum stroke
Min.: 0 mm
(0 in)Max.: 300 mm
(11.8 in)- Resolution
0.001 mm
(0 in)- Weight
15 kg
(33.069 lb)
Description
Introduction
BTG-02 Bottle Wall Thickness Tester is an industrial instrument for non-destructive measurement of wall and bottom thickness of PET beverage bottles, glass bottles, aluminum cans and other packaging containers. It is designed for laboratory testing and production-line quality control.
Features
Technical Specification
Model: BTG-02
Measuring range: 0-12.7 mm (standard); 0-25.4 mm (optional); other ranges on request
Resolution: 0.001 mm
Maximum sample diameter: ≤150 mm
Maximum sample length: ≤300 mm
Instrument dimensions: 400 mm × 220 mm × 600 mm
Instrument weight: 15 kg
Standards
Compliant with: GB2637-1995; GB/T2639-2008; YBB00332002
Applications
BTG-02 Bottle Wall Thickness Tester is an industrial instrument for non-destructive measurement of wall and bottom thickness of PET beverage bottles, glass bottles, aluminum cans and other packaging containers. It is designed for laboratory testing and production-line quality control.
Features
- Customizable measuring probes to fit various bottle shapes and complex profiles
- Single instrument capable of measuring both bottle wall and bottom thickness
- High-precision measuring head with 0.001 mm resolution
- Simple, durable mechanical design for stable operation
- Flexible fixturing to accommodate large and small samples
Technical Specification
Model: BTG-02
Measuring range: 0-12.7 mm (standard); 0-25.4 mm (optional); other ranges on request
Resolution: 0.001 mm
Maximum sample diameter: ≤150 mm
Maximum sample length: ≤300 mm
Instrument dimensions: 400 mm × 220 mm × 600 mm
Instrument weight: 15 kg
Standards
Compliant with: GB2637-1995; GB/T2639-2008; YBB00332002
Applications
- Quality control in bottle and can manufacturing
- R&D and material testing for packaging development
- Incoming inspection of packaging components
