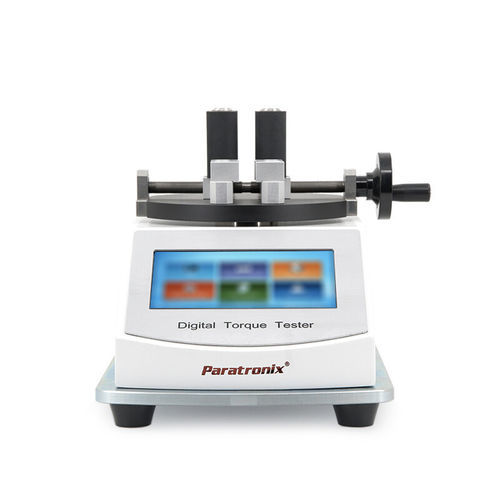

Bench-top torque meter PNY-20

for bottle closuresfor bottle capsfor loosening torque

Introduction
PNY-20 Torque Tester is designed to measure application torque and removal torque of bottle caps, including penicillin vials, beverage bottles, drinking water bottles and oil drums. It measures torque in both clockwise and counterclockwise directions and automatically records the peak torque value. The instrument is suitable for quality control in food, pharmaceutical, cosmetics and inspection laboratories.

Features

• User-friendly interface and simple operation
• Peak value hold function for maximum torque
• Data storage up to 1000 test records
• High-precision torque sensor with 0.5%FS accuracy
• High-resolution LCD display
• Built-in micro printer for on-site printouts
• Integrated calibration program for easy calibration
• User management with 3-level permission control

Technical parameters
Item | Specification
Measuring Range | 0-5.00 N•m (Customization available for other ranges)
Unit | N•m / kg•cm / lb•in
Measurement Accuracy | Level 0.5 (0.5%FS)
Test Mode | Application torque & removal torque (clockwise and counterclockwise)
Clamping Size | 3 mm - 180 mm
Data Storage | 1000 groups (group statistics, printing)
Data Transmission | Optional PC connection for operation, data storage and report printing
User Management | Password setting and 3-level permission management
Instrument Dimension | 280 (L) × 335 (B) × 200 (H) mm
Weight | 10 kg
Power Supply | AC 220V ±22V, 50Hz (customizable)
Standard Configuration | Main unit, power cord, printing paper
Optional Configuration | Special fixtures and computer software customization available

Standards
ASTM D2063, ASTM D3198, ASTM D3474

Technical characteristics / specifications

• Model: PNY-20
• Measuring range: 0-5.00 N•m (customizable)
• Units: N•m, kg•cm, lb•in
• Measurement accuracy: Level 0.5 (0.5%FS)
• Test modes: application torque and removal torque (CW and CCW)
• Clamping size: 3–180 mm
• Memory: up to 1000 groups with statistics and print
• Data transmission: optional PC connectivity for reports
• Display: high-resolution LCD
• Printer: built-in micro printer
• Calibration: integrated calibration program
• User management: 3-level permission control
• Dimensions: 280 × 335 × 200 mm (L × B × H)
• Weight: 10 kg
• Power: AC 220V ±22V, 50Hz
• Standard supply: main unit, power cord, printing paper
• Optional: special fixtures and PC software customization
• Applicable industries: quality inspection, food, pharmaceutical, cosmetics
