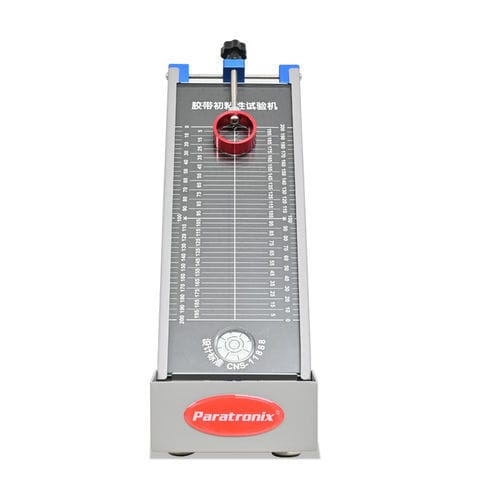

Adhesion tester CZY-01

for medical devicesfor filmfor sheet materials

Introduction
CZY-01 Adhesive Tack Tester (Rolling Ball Tack Tester) is designed to measure tack of pressure-sensitive tapes, medical patches, self-adhesive labels, protective films and similar products. It provides repeatable rolling-ball tack measurements for quality control and R&D in production and testing laboratories.

Applications

• Pressure-sensitive tapes
• Medical patches and plasters
• Self-adhesive labels
• Protective films and laminates
• Adhesive-coated substrates

Features

• Main body made of aluminum
• Precision angle adjustment device for 30°/40°/60° test angles
• Adjustable steel ball position control knob for accurate placement
• Standard steel balls made of bearing steel (range 1/32"–1")

Technical parameters
Item : Parameter
Adjustment Angle : 30° ～40° ～60°
Panel Width : 120mm
Testable Area Width : 80mm
Standard Steel Ball : 1/32” ～ 1” (29 balls)
Instrument Dimension : 320(L)mm × 140(B)mm × 180(H)mm
Weight : 5kg
Standard Configuration : Main Instrument, Standard Steel Ball

Standards
This instrument conforms to ASTM D3121 and JIS Z 0237 international standards.

Specifications

• Model: CZY-01
• Measuring method: rolling-ball tack test
• Panel width: 120 mm
• Test area width: 80 mm
• Available test angles: 30°, 40°, 60°
• Steel ball options: 1/32"–1" (29 sizes)
• Dimensions (L×W×H): 320 × 140 × 180 mm
• Weight: 5 kg
• Included: main instrument and standard steel balls
