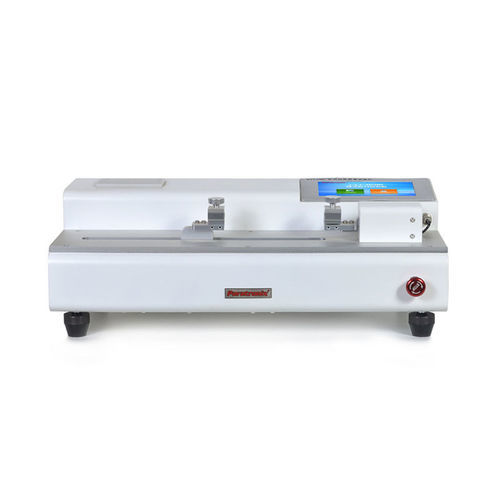

Peel testing machine ETT-H20

qualitytensioncomputer-controlled

Introduction
The ETT-H20 Horizontal Tensile Stripping Tester is designed for peel and tensile tests on tissue paper, pressure-sensitive adhesive tape and a wide range of flexible materials. It is suitable for evaluating tensile and peel properties of plastic films, sheets, composites, adhesives, medical patches, protective films, metal foils and similar substrates used in industrial quality control and R&D.

Features

• Microcomputer control with large LCD and touch-screen interface for test setup and monitoring
• Horizontal structure with interchangeable sample fixtures to accommodate different test types
• Onboard data storage and data export functions for result management
• Multiple test modes to cover tensile, peel and specialized measurement protocols
• Warranty: motor 3 years; load cell 5 years; instrument 1 year
• 3-level user management for access control

Parameters
Load cell capacity: standard 50 N (optional range 1–200 N)
Effective force range: 2%–100% FS
Force resolution: 0.001 N
Test accuracy: 0.5% FS
Test speed: 1–500 mm/min, continuously variable
Speed accuracy: ±1%
Displacement resolution: 0.01 mm
Sample width: 35 mm (custom sizes available)
Effective stroke: 300 mm
Instrument dimensions: 600 × 320 × 200 mm (L × W × H)
Net weight: approx. 20 kg
Power supply: 220 V, 50 Hz

Standards

• ISO 37
• ASTM E4
• ASTM D882
• ASTM D1938
• ASTM D3330
• ASTM F88
• ASTM F904
• JIS P8113

Technical specifications

• Model: ETT-H20
• Type: Horizontal tensile/peel tester for flexible materials
• Control: Microcomputer, large LCD and touch-screen
• Load cell: Standard 50 N (optional 1–200 N)
• Data: Storage and export capabilities
• Test modes: Multiple selectable modes for tensile and peel tests
• User management: 3-level
• Warranty: Motor 3 years; load cell 5 years; instrument 1 year
