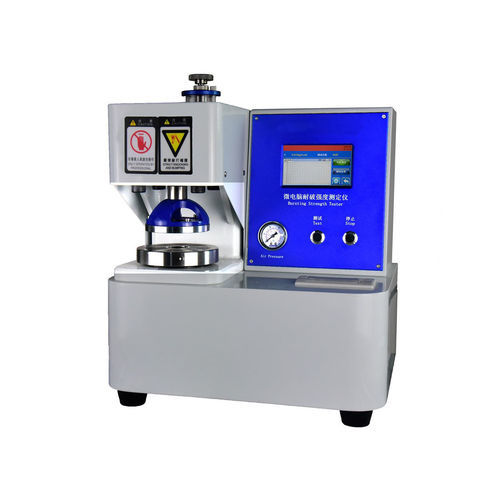

Burst testing testing machine PR-02burstdeformationmanual
Add to favorites
Compare this product
Characteristics
- Test type
- deformation, burst, for burst testing
- Operating mode
- manual
- Test material
- for packaging, for paper, for cardboard boxes
- Sector
- for research and development, for the packaging industry, for the paper industry
- Technology
- resistance
- Configuration
- benchtop, tabletop
- Other characteristics
- with touchscreen, custom-made, high-pressure
Description
Product Introduction
PR-02 Bursting Strength Tester is designed to measure the bursting strength performance of paper, paperboard, corrugated board, and cartons. This instrument is suitable for paperboard manufacturers, carton production enterprises, carton end-users, research institutions, and other related organizations.
Features
Technical specification parameters
Specification: PR-02 Bursting Strength Tester
Measuring Range: 200-5600 KPa
Accuracy: ± 0.5%
Resolution: 0.01 KPa
Deformation Error: 1 mm
Upper-Lower Disc Concentricity: 0.25 mm
Upper Clamp Opening: 31.5±0.5 mm
Lower Clamp Opening: 31.5±0.5 mm
Operation Panel: Touch Screen and Buttons
Clamp Positioning: 360° Free Positioning
Clamping Force: 690 KPa (Adjustable)
Air Source: Prepared by the User
Instrument Dimension: 400*400*500 mm
Instrument Weight: 50 Kg
Configuration: Main instrument; power cord; 4 rolls of thermal printing paper; 1 bottle of silicone oil; 2 high-pressure rubber diaphragms; 5 imported high-pressure calibration shims; 1 specialized wrench for bursting strength tester
Test Standard
ISO 2759, GB/T 1539
Specifications / Technical details
PR-02 Bursting Strength Tester is designed to measure the bursting strength performance of paper, paperboard, corrugated board, and cartons. This instrument is suitable for paperboard manufacturers, carton production enterprises, carton end-users, research institutions, and other related organizations.
Features
- The tester supports multiple units of measurement, including kPa, gf/cm², and Lb/in².
- Patented design ensures stable and precise testing operations.
- Calibration shim is provided with each instrument to ensure testing accuracy.
- Simplified operation via buttons and touch screen.
- Industry-leading testing sensitivity.
Technical specification parameters
Specification: PR-02 Bursting Strength Tester
Measuring Range: 200-5600 KPa
Accuracy: ± 0.5%
Resolution: 0.01 KPa
Deformation Error: 1 mm
Upper-Lower Disc Concentricity: 0.25 mm
Upper Clamp Opening: 31.5±0.5 mm
Lower Clamp Opening: 31.5±0.5 mm
Operation Panel: Touch Screen and Buttons
Clamp Positioning: 360° Free Positioning
Clamping Force: 690 KPa (Adjustable)
Air Source: Prepared by the User
Instrument Dimension: 400*400*500 mm
Instrument Weight: 50 Kg
Configuration: Main instrument; power cord; 4 rolls of thermal printing paper; 1 bottle of silicone oil; 2 high-pressure rubber diaphragms; 5 imported high-pressure calibration shims; 1 specialized wrench for bursting strength tester
Test Standard
ISO 2759, GB/T 1539
Specifications / Technical details
- Measuring Range: 200-5600 KPa
- Accuracy: ± 0.5%
- Resolution: 0.01 KPa
- Deformation Error: 1 mm
- Upper-Lower Disc Concentricity: 0.25 mm
- Upper/Lower Clamp Opening: 31.5±0.5 mm
- Operation Panel: Touch Screen and Buttons
- Clamp Positioning: 360° free positioning
- Clamping Force: 690 KPa (Adjustable)
- Instrument Dimension: 400*400*500 mm
- Instrument Weight: 50 Kg
- Configuration included: main instrument; power cord; thermal printing paper; silicone oil; high-pressure rubber diaphragms; calibration shims; specialized wrench
- Test Standard: ISO 2759, GB/T 1539
