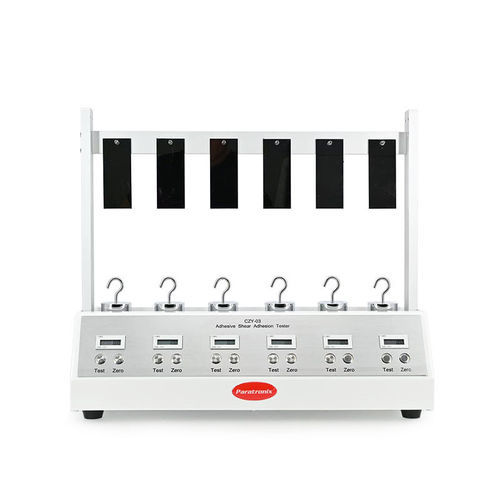

Pressure testing machine CZY-03

shearing resistanceautomaticcomputer-controlled

Introduction
CZY-03 Adhesive Shear Tester is suitable for testing adhesives, adhesive tapes, adhesive products and related industries. It is intended for holding-power tests of pressure-sensitive adhesive tapes.

Features

• Stainless steel buttons for stable and durable contact
• 6 stations to support multi-group testing
• Microcomputer-controlled automatic timer with LCD display for accurate timing
• 304 stainless steel construction; design meets standard requirements

Technical parameters
Item — Parameter
Weights — 1000±10g (including test plate)
Test Plate — 125 mm (L) × 50 mm (W) × 1.1 mm (D)
Timing Range — 0-99h59m59s
Number of Stations — 6
Instrument Dimension — 320(L)mm×140(B)mm×180(H)mm
Instrument Weight — 20kg
Standard Configuration — Main Instrument, Test Plate, Weights, Pressing Roller

Standards
This instrument conforms to international standards ASTM D3654 and IS Z0237.

Technical characteristics / specifications

• Model: CZY-03
• Application: shear adhesion testing for adhesives and pressure-sensitive tapes
• Stations: 6
• Timer: 0–99 h 59 m 59 s, microcomputer-controlled, LCD display
• Weights: 1000±10 g (including test plate)
• Test plate size: 125 × 50 × 1.1 mm
• Dimensions: 320 × 140 × 180 mm (L×B×H)
• Instrument weight: 20 kg
• Standard configuration: Main Instrument, Test Plate, Weights, Pressing Roller
• Material/finish: 304 stainless steel plate
• Control/display: Microcomputer-controlled automatic timing with LCD
• Conforms to: ASTM D3654; IS Z0237
