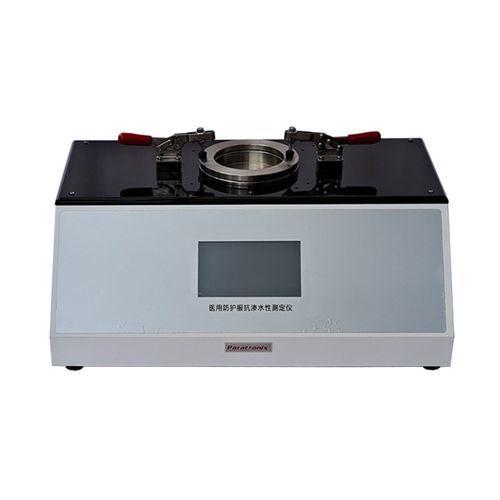

Fabric leak tester MU-F1003

tabletopcompact

Equipment use:
Used for impermeability test for medical protective clothing, tight fabrics, such as canvas, tarpaulin, tent cloth, waterproof clothing cloth and so on.

Meet the standard:

• GB19082-2009 Technical requirements for Medical disposable protective clothing 5.4.1 Impermeability
• GB/T 4744-1997 Determination of impermeability of textile fabrics hydrostatic test
• GB/T 4744-2013 Fabric seepage performance tester

Technical parameters:
Parameters of three machines:
Model — Measuring range — Accuracy — Resolution — Water pressure rise rate — Sample chuck area
A — 500pa-50kpa — 0.2%FS — 1 — 1kpa-20kpa — 100cm2
B — 500pa-200kpa — 0.2%FS — 3 — 1kpa-30kpa — 100cm2
C — 5kpa-500kpa — 0.2%FS — 8 — 1kpa-100kpa — 8cm2

Other technical details:

• Water pressure rise rate: digital setting
• Working mode: pressurization method - constant pressure timing - constant pressure timing - winding relaxation - seepage water leakage method
• Display mode: bright blue screen Chinese display
• Power supply: AC 220V±10% 50Hz, 100W
• Instrument size: 550×400×500 mm
• Machine weight: about 50 kg

Caractéristiques / spécifications techniques:

• Model: MU-F1003 (variants A, B, C with different measuring ranges)
• Measuring ranges: A: 500 Pa–50 kPa; B: 500 Pa–200 kPa; C: 5 kPa–500 kPa
• Accuracy: 0.2% FS for all variants
• Resolution: A:1; B:3; C:8
• Water pressure rise rate ranges: A:1 kPa–20 kPa; B:1 kPa–30 kPa; C:1 kPa–100 kPa
• Sample chuck area: A/B: 100 cm²; C: 8 cm²
• Water pressure rise setting: digital
• Working modes: pressurization, constant pressure timing, winding relaxation, seepage water leakage
• Display: bright blue screen (Chinese)
• Power: AC 220V±10%, 50Hz, 100W
• Dimensions: 550 × 400 × 500 mm
• Weight: ~50 kg
• Applicable standards: GB19082-2009, GB/T 4744-1997, GB/T 4744-2013
