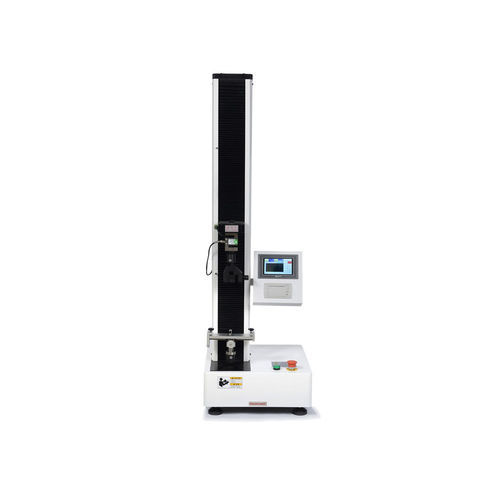

Tensile testing machine ETT-A

peel forcepeelbreak force

Introduction
ETT-A Auto Tensile Tester is applicable to determination of tensile properties, peel strength (90°, 180°), deformation, tearing strength, heat seal strength, puncture resistance, opening force, low-speed unwrapping force, pullout force and other properties of plastic films, composite materials, adhesives, adhesive tapes, medical patches, protective films, pressure sensitive paper, combination caps, metal foils and back panel materials, etc.

Features

• Equipped with imported clamping system to avoid the error caused by the operator
• High sensitivity load cell and high quality lead screw to ensure accurate displacement
• Test speed adjustable within the range of 5-600 mm/min to meet requirements for 180° peel test, ampoule breaking force test, film tensile strength test, etc.
• Multiple testing modes including tensile strength, elongation rate, tensile strength at break, etc.
• Warranty: 3 years for the motor, 5 years for load cell and 1 year for the instrument
• Ultra-long stroke of 1000 mm and large load structural design (Max. 500 kg) to meet wide testing ranges

Standards

• ISO 37
• ASTM E4
• ASTM D882
• ASTM D1938
• ASTM D3330
• ASTM F88
• ASTM F904
• JIS P8113

Technical Specification
Item : Specification
Load Cell Capacity : 50N / 200N / 500N (Customization available for other range)
Resolution : 0.001 N
Testing Accuracy : 0.3% FS
Test Speed : 5-600 mm/min
Sample Width : ≤ 20 mm (Customization available for sample grips)
Stroke : 1000 mm (Customization available for other range)
Driving System : Imported lead screw (Taiwan)
Data Output : Embedded Micro-printer
Computer Control : Optional with software
Instrument Dimension : 460 (L) × 400 (W) × 1460 (H) mm
Net Weight : 70 kg
Configuration : Instrument, Sample Grips, Power Cord, Instruction Manual, Printing Paper

Features / Technical specifications

• Load cell capacities available: 50N, 200N, 500N (other ranges customizable)
• Resolution: 0.001 N
• Testing accuracy: 0.3% FS
• Test speed range: 5–600 mm/min
• Maximum stroke: 1000 mm (customizable)
• Maximum load design: up to 500 kg
• Sample width supported: up to 20 mm (grips customizable)
• Driving system: imported lead screw (Taiwan)
• Data output: embedded micro-printer; computer control available as an option
• Instrument dimensions: 460 × 400 × 1460 mm
• Net weight: 70 kg
• Standard configuration includes instrument, sample grips, power cord, instruction manual and printing paper
