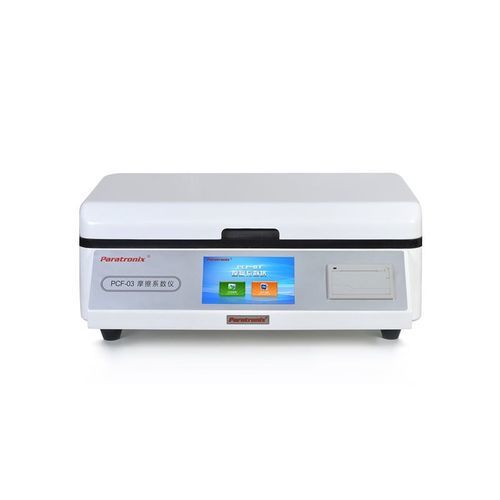

Friction testing tribometer PCF-03

Product Introduction
PCF-03 Coefficient of Friction Tester is a laboratory instrument for determining static and dynamic coefficients of friction of paper, paperboard, plastic films, sheets, conveyor belts and similar materials. Measuring friction properties helps control package opening performance, packer speed and related production parameters.

Product Features

• Designed to determine static coefficients of friction on an inclined sliding plane
• Sliding plane and sled undergo demagnetization and residual magnetism detection to reduce systematic errors
• Microcomputer control with 7-inch color TFT touch screen for easy operation and data viewing
• Real-time digital display of dynamic and static friction coefficients; slider stroke pre-settable with a wide adjustment range
• Equipped with a micro printer and standard RS232 interface for external connection and data transfer

Test Standards

• ASTM D1894
• ISO 8295
• TAPPI T816

Technical Specifications

• Sample thickness: ≤5 mm (other thicknesses customizable)
• Sliding plane size: 63×63 mm
• Test modes: ASTM and free mode
• Display: 7-inch TFT color touch screen
• Sled mass: 200 g (standard), 500 g (optional)
• Bench size: 120×400 mm
• Measurement display: Real-time dynamic and static friction coefficients
• Measurement accuracy: Better than 0.5
• Sliding speed: 100, 150 mm/min; stepless 1–500 mm/min (customizable)
• Sliding stroke: Max. 280 mm (adjustable)
• Force range: 0–30 N
• Instrument dimensions: 600 × 400 × 240 mm (L×W×H)
• Power supply: AC220V ±22V, 50 Hz
• Environmental requirements: Temperature 23±2℃, humidity 50±5% RH
• Standard configuration: Main instrument, micro printer, 200 g sled
• Optional: 500 g non-standard sled, computer software
