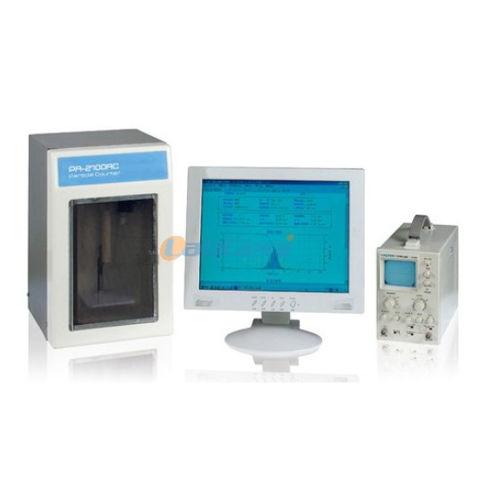

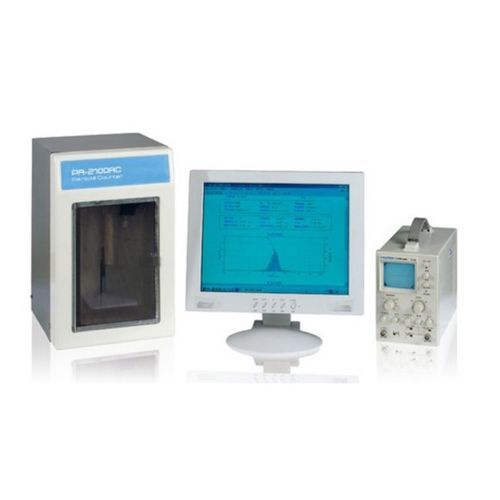

Liquid particle counter PA-2100RC

electronicfor pharmaceutical productsautomatic

Product overview
PA-2100RC Coulter (resistance) particle counter for laboratory and production quality control of powders dispersed in liquid. Suitable for narrow particle size distributions and low particle volume; provides fast measurement and detailed size distribution outputs.

Applications

• Particle size analysis in R&D and QC for powders and suspensions
• Pharmaceuticals, ceramics, pigments, battery materials and other industrial powders
• Process control and incoming material inspection

Report Items

• Particle size distribution table and graph
• Average diameter, median diameter (D50), standard deviation
• Relative deviation, specific surface area (SSA), particle counts

Features

• Separated measuring unit, computer and oscilloscope for stable measurement
• Advanced pulse measurement with over 8000 channels for fine resolution
• Pressure sensor replaces mercury manometer for precise vacuum control and higher automation
• Photoelectric liquid level detection for accurate volume measurement
• Automatic de-clogging function

Software Function

• Four statistical modes: volume-based, particle-based, area-based, particle number
• Two accumulation directions: small-to-large and large-to-small
• Interface languages: English, Chinese
• Customizable report items and data replication

Specifications

• Measuring range: 1-256 μm
• Repeatability: <2%
• Measurement duration: 15 seconds
• Channels: 8192 (pulse channels >8000)

Configuration

• RC-2100 resistance (Coulter) particle counter
• Ultrasonic cleaning unit
• Oscilloscope
• Analysis software
• Accessories

Technical specifications

• Model / SKU: PA-2100RC
• Supported languages: English, Chinese
• Report outputs: particle size distribution table & graph, average diameter, median diameter, standard deviation, relative deviation, SSA, particle numbers
• Additional functions: pressure sensor, photoelectric liquid level detection, auto de-clogging, configurable reports, data replication
