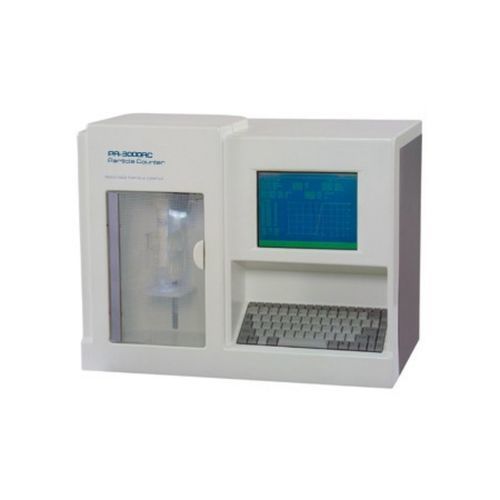

Liquid particle counter PA-3000RC

digitalelectronicfor samples

Short description
PA-3000RC resistance method (Coulter) particle counter is designed for measuring powders with narrow size distributions and low particle volume in liquid suspension. The instrument combines high channel resolution and rapid measurement speed for reliable particle-size analysis in laboratory and production environments.

Applications
Suitable for particle size analysis of suspensions and slurries in industries such as materials processing, ceramics, pharmaceuticals, coatings and quality control laboratories where accurate counting and sizing of particles from 1 to 256 μm is required.

Report Items

• Particle size distribution table & graph
• Average diameter
• Median diameter
• Standard deviation
• Relative deviation
• Specific surface area (SSA)
• Particle numbers
• Other report items as required

Specifications

• Measuring range: 1-256 μm
• Repeatability: <2%
• Measurement duration: 15 seconds
• Channels: 8192

Features

• Compact design integrating main unit, computer and oscilloscope using ARM technology
• Advanced pulse measurement with over 8000 channels for high resolution
• Pressure sensor replaces traditional mercury manometer for accurate vacuum measurement and improved automation
• Proprietary photoelectric liquid-level detection for precise and reliable volume control
• Auto de-clogging function
• Advanced auto-level balance technology

Software Function

• Four statistical modes: based on volume, particle area, and particle number
• Two accumulative directions: small-to-large, large-to-small
• Two languages supported: English, Chinese
• Selectable report items configurable to customer requirements
• Data replication and export functions

Configuration

• PA-3000RC resistance method (Coulter) particle counter
• Ultrasonic cleaning machine
• Printer
• Filter
• Analysis software
• Other accessories

Technical specifications

• Model: PA-3000RC
• Measuring range: 1-256 μm
• Repeatability: <2%
• Measurement duration: 15 seconds
• Channels: 8192 (advanced pulse measurement >8000 channels)
• Languages supported: English, Chinese
