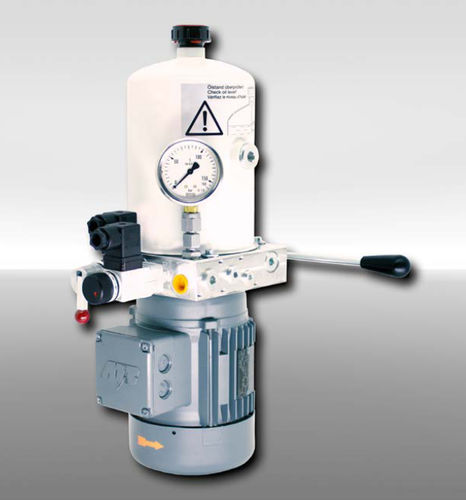

Electric hydraulic power unit H205M seriesnot specifiedcompactmodular
Add to favorites
Compare this product
Characteristics
- Power source
- electric, not specified
- Other characteristics
- compact, modular
- Operating pressure
Max.: 235 bar
(3,408 psi)Min.: 12 bar
(174 psi)- Nominal power
0.75 kW, 1.5 kW
(1.02 hp, 2.04 hp)- Flow rate
3.7 l/min, 4.4 l/min
(0.98 us gal/min, 1.16 us gal/min)- Tank capacity
2 l, 4 l
(0.53 gal, 1.06 gal)
Description
For the operation of hydraulic brakes
Available for a wide pressure range
Features
- Compact design
- Very small dimensions because of the cylindrical design of the tank
- Optimised oil-connection of pressure side provided by two connection bores arranged in an angle of 90°
- Inside and outside of the tank is oil-resistant powder painted
Notes
- Fastening: 2 mounting threads M8 x 15 mm deep
Options
- Pressure switch for pressure monitoring
- Additional switching valves for special functions
- Further options can be flange-mounted in modular design, e.g. step braking, soft braking or pressure accumulator
- Control cabinet for controlled operation of the hydraulic unit manually or externally
- Terminal box
Technical Specifications / Features
- Product type: Hydraulic Power Unit
- Model: H205M
- Application: For the operation of hydraulic brakes
- Design: Compact, cylindrical tank
- Mounting: 2 mounting threads M8 x 15 mm deep
- Options: Pressure switch, additional switching valves, modular flange-mounting, control cabinet, terminal box
