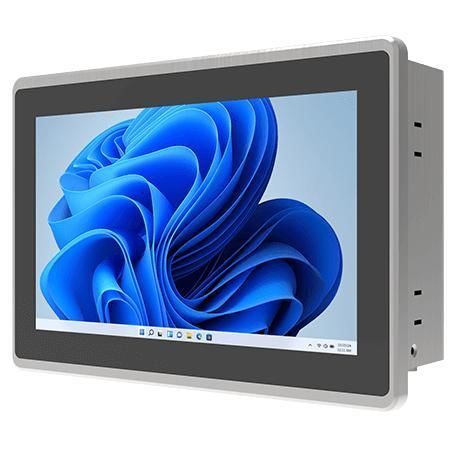

Multitouch screen panel PC W07IAN3S-PPT1

TFT LCDPCAP capacitive touch screen7"

Overview
The Winmate W07IAN3S-PPT1 is a 7-inch PP Series HMI Panel PC based on Intel® Alder Lake-N processors (N100 default, N150 optional). Engineered for machine control, factory automation and operator HMIs, it combines compact industrial display, comprehensive I/O and long lifecycle availability for embedded and industrial applications.

Key Features

• 7" SVGA TFT LCD (1024 × 600) with Projected Capacitive (PCAP) multi-touch
• Intel® Alder Lake-N processors: N100 (default) / N150 (optional)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• Dual Intel® 2.5 Gigabit Ethernet controllers
• Ports: 1 x HDMI (optional), 1 x USB 3.2 Gen2 Type-C (DP-Alt), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 4 x COM
• Front IP65 protection; panel mount (default) and VESA mount (optional)
• Fanless design, plastic front bezel with metal back cover

Product Highlights
Reliable compute and graphics for automation
The PP Series integrates Intel® N100/N150 processors with UHD graphics to deliver stable processing and smooth visualisation for control and monitoring tasks, enabling responsive HMI and real-time data handling.

Compact industrial display
The 7" SVGA TFT panel provides 320 nits brightness and 1000:1 contrast ratio for clear readability in compact installations and industrial operator stations.

Flexible connectivity for system integration
Comprehensive I/O including dual 2.5GbE, USB Type-C with DP Alt Mode, multiple USB and serial ports, HDMI and M.2 expansion simplifies integration with PLCs, sensors and industrial networks.

Certifications
CE, FCC

Technical specifications

• Display: 7.0 inches, 1024 × 600, 320 nits, 1000:1 contrast, active area 153.6 × 90 mm
• Touch / Glass: Projected Capacitive Multi-Touch
• Processor: Intel® N100 (6M Cache, up to 3.40 GHz) default; Intel® N150 (6M Cache, up to 3.60 GHz) optional
• Memory: 1 x SO-DIMM DDR5-4800, default 4 GB, optional 8 GB / 16 GB (max 16 GB)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (used when NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (Linux option does not support Wake on Touch)
• Wireless: Optional via M.2 2230 E-Key (Wi‑Fi/BT)
• Mechanical: 185 × 128 × 61 mm; cut-out 175 × 117 mm; weight 1.5 kg
• Mounting: Panel mount default; VESA optional
• Enclosure / Cooling: Plastic front bezel, metal back cover, fanless
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• IP Rating: Front IP65
• IO: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt Mode); 4 x USB 2.0; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video / Audio: 1 x HDMI 2.0b (optional); 2 x speakers
• Expansion / Indicators: 1 x M.2 2230 E-Key slot; LED for power and storage
• Power: 1 x 12V DC (2.5φ jack); adapter 12V 50W (100~240V AC to DC)
• Accessories: Power cord, VESA screws, mounting clips
