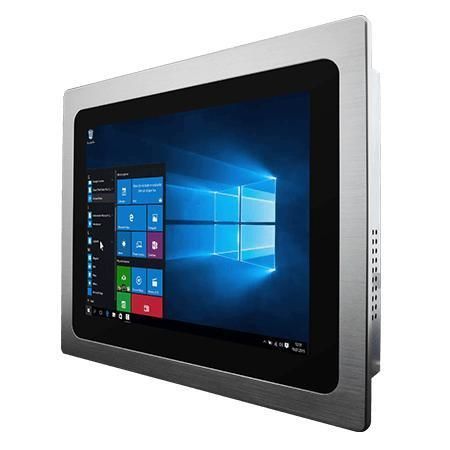

Multi-touch screen panel PC R10IT3S-PPT2

LCDPCAP capacitive touch screenLED backlight

Overview
The Winmate R10IT3S-PPT2 is a 10.4-inch PP Series HMI Panel PC powered by Intel® Core™ i5-1135G7, intended for machine control, factory automation and operator HMI applications. It features a true-flat front, fanless cooling and an aluminum die-cast housing for reliable operation in industrial environments.

Key features

• 10.4-inch LED LCD with projected capacitive (PCAP) multi-touch screen
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power operation
• Front IP65 protection against dust and splashes
• Aluminum die-cast housing with slim true-flat design
• Rich I/O for industrial and IoT connectivity (serial, USB, LAN, audio, optional video)

Product highlights
True-flat front and slim profile simplify cleaning and reduce ingress points for dust.
PCAP multi-touch supports multi-finger gestures and glove operation for versatile operator interaction.
Front IP65 rating permits installation in dusty or splash-prone locations while protecting internal electronics.
Comprehensive I/O and expansion slots (M.2, SATA) enable integration with factory networks and peripherals.
Aluminum die-cast chassis provides mechanical strength, corrosion resistance and improved thermal behavior for continuous industrial use.

Certifications

• CE
• FCC

Technical specifications

• Display: Size: 10.4 inches; Resolution: 1024 x 768 (XGA); Touch/Glass: Projected Capacitive Multi-Touch; Brightness: 500 nits; Contrast: 1000:1; View Angles: 88/88/88/88; Active Area: 210.4 x 157.8 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; options: 8 GB, 16 GB, 32 GB
• Storage: 128 GB SSD default; options: 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2 TB; M.2 NVMe support (M.2 2280)
• Ethernet: 2 x Intel® Ethernet Controller (2.5 Gbps)
• Security: TPM 2.0
• Operating system: Optional Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional; no Wake on Touch)
• Wireless: WLAN optional; Bluetooth optional (M.2 2230 E-Key for Wi‑Fi)
• Mechanical: Dimensions: 284 x 255 x 67 mm; Cut-out: 262 x 218 mm; Weight: 2.6 kg; Mounting: Panel mount default; VESA optional; Enclosure: Aluminum die-cast; Cooling: Fanless
• Environment: Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C; Operating humidity: 10% to 90% RH non-condensing; Front IP rating: IP65
• I/O ports: USB: 2 x USB3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5G RJ45; Video: 1 x HDMI 2.0 (optional); Audio: 2 x speakers
• Indicators & controls: 1 x LED power; 1 x LED storage; 1 x brightness adjustment knob; Buttons: power, reset
• Power: Input: 1 x 12 V DC (2.5φ DC jack); Adapter: 12 V 120 W included/recommended; Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
