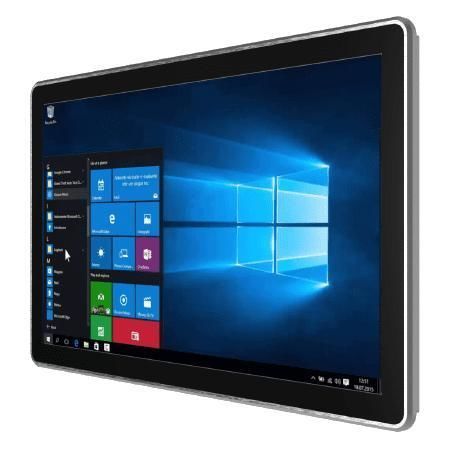

Multi-touch screen panel PC W22IT3S-PPA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
The Winmate W22IT3S-PPA3 is a 21.5 in PP Series HMI Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). Built for machine control, factory automation and operator HMI applications, it features fanless cooling, aluminum die-cast housing, front IP65 protection and a projected-capacitive 1920 x 1080 multi-touch display. It targets industrial buyers, OEMs and system integrators requiring long lifecycle availability and industrial-grade components.

Key Features

• 21.5 in FHD (1920 x 1080) display with projected-capacitive (PCAP) multi-touch
• Intel® Core™ i5-1135G7 processor (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling architecture and ultra-low power operation
• Front panel rated IP65 for dust and water protection
• Aluminum die-cast metal housing for corrosion resistance
• Rich I/O: serial, USB, dual 2.5 Giga LAN, audio and optional HDMI; expansion via M.2 slots

Design & Usability

• True-flat surface and slim bezel for easy cleaning and reduced dust accumulation
• Responsive PCAP multi-touch for intuitive operator interaction and multi-touch gestures
• Front IP65 rating ensures operation in dusty or splash-prone environments
• Comprehensive I/O layout for industrial IoT connectivity and peripheral integration
• Panel-mount standard with optional VESA mount for flexible installation

Certifications

• CE
• FCC

Technical specifications

• Display: 21.5 in; Projected Capacitive Multi-Touch; 1920 x 1080; 250 nits; 3000:1 contrast; Active area 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options 8 / 16 / 32 GB
• Storage: 128 GB SSD default; optional 256 / 512 GB / 1 / 2 / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 2 x Intel® 2.5 Giga LAN (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: Optional WLAN/Bluetooth via M.2 2230 E-Key
• Mechanical: 533 x 324 x 77 mm; cut-out 504 x 304 mm; weight 7.2 kg; panel mount (default), VESA optional; metal housing
• Environment: Operating humidity 10%–90% RH non-condensing; operating temp 0°C–50°C; storage -10°C–60°C; front IP65
• I/O: 2 x USB 3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; Video: HDMI 2.0 (optional); Audio: 2 x speaker; Indicators: LED power / storage; Brightness knob
• Buttons: Power, Reset
• Power: 1 x 12 V DC (2.5φ jack); adapter 12 V 120 W; accessories: 100–240 V AC to DC adapter, power cord, VESA screws, mounting clips
