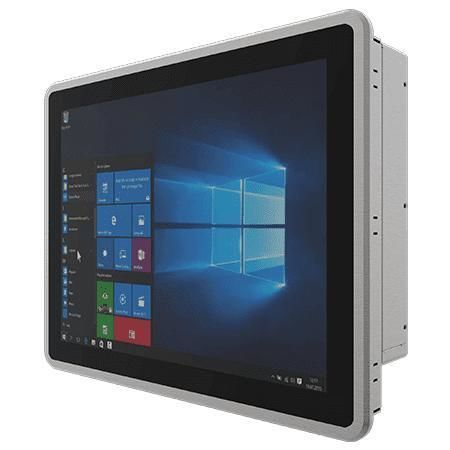

Multi-touch screen panel PC R15IT7T-PPC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IT7T-PPC3 is a 15.0" PP Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake) for machine control, factory automation and operator HMI. It features a true-flat front, aluminum die-cast housing, fanless cooling and front IP65 protection for dust and water resistance. The system provides multiple I/O, multi-display support and flexible storage and expansion for industrial IoT integration.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 15.0" display, 1024 x 768 resolution
• Projected capacitive multi-touch (PCAP)
• Multi-display interfaces: DP / HDMI / LVDS / eDP
• Multiple I/Os: serial ports, USB, LAN, audio, video, expansion slots
• Front panel IP65
• Aluminum die-cast housing, fanless design
• 12V single-voltage power input

Product Highlights

• True-flat and slim design: flat front for easy cleaning and integration into control panels.
• PCAP multi-touch: accurate multi-touch input for operator interaction and gestures.
• Front IP65: protected against dust and water splashes in industrial environments.
• Rich I/O: serial, USB, Gigabit and 2.5Gb LAN, video outputs and audio for flexible connectivity and IoT use.
• Expandable storage and modules: M.2 NVMe, M.2 E-Key for Wi‑Fi and PCIe slot for additional modules.

Specifications

• Display — Size: 15.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display — Resolution: 1024 x 768
• Display — Brightness: 300 nits
• Display — Contrast Ratio: 2000:1
• Display — Active Area: 304.1 x 228.1 mm
• System — Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz); option i5-1145G7E
• System — Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per slot)
• System — Storage: 128GB SSD default; options: 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45 (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Linux option does not support Wake on Touch)
• WLAN / BT: optional (M.2 2230 E-Key)
• Mechanical — Dimensions: 367 x 291 x 75 mm; Cut-out: 360 x 261 mm; Weight: 4.2 kg
• Mounting: Panel mount default; VESA mount optional
• Enclosure: Aluminum die-cast
• Cooling: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• IO Ports — USB: 4 x USB 3.2 Gen2x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• IO Ports — Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• IO Ports — Audio: Mic in; Line out
• IO Ports — Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & Controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Power — Input / Adapter: 1 x 12V DC (Din4 pin), adapter 12V 120W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
