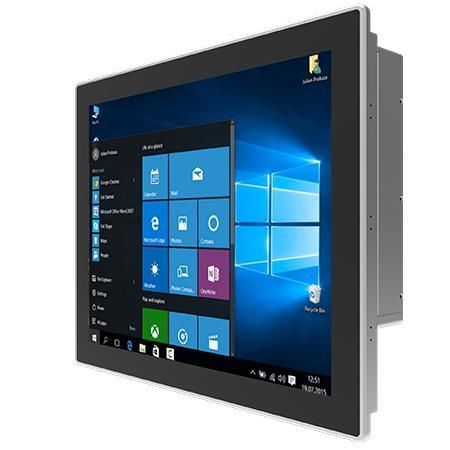

Multitouch screen panel PC R19IT3S-PPM1

PCAP capacitive touch screen19"1280 x 1024

Overview
The Winmate R19IT3S-PPM1 is a 19-inch PP Series HMI Panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor in a fanless aluminum housing with a front IP65 rating for dust and splash protection. The product targets industrial installations that require stable field operation, flexible I/O and long lifecycle availability.

Key features

• 19-inch display, 1280 x 1024 resolution with Projected Capacitive (PCAP) multi-touch.
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz).
• Fanless cooling and ultra-low power design.
• Front panel IP65 water and dust protection.
• Aluminum die-cast housing for corrosion resistance and durability.
• Rich I/O: serial ports, multiple USB, dual 2.5G LAN, optional HDMI and audio; M.2 expansion for NVMe and Wi‑Fi.
• Application-ready functions: room scheduling, access control, room information display.

Certifications

• CE
• FCC

Product details
True flat front and slim bezel simplify cleaning and integration into operator panels or kiosks. PCAP multi-touch supports gestures and precise touch input. Dual 2.5G LAN and multiple serial/USB interfaces enable industrial IoT connectivity. Fanless design and aluminum enclosure reduce maintenance and improve reliability in harsh environments. Suitable for industrial automation, operator interfaces and kiosk deployments where ruggedness and long-term availability are required.

Specifications

• Display — Size: 19.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1280 x 1024
• Display — Panel Brightness: 250.0 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 85, 85, 80, 80 (deg)
• Display — Active Area: 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB / 32 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64 bit); Windows 11 Pro 64 bit; Linux Ubuntu 22.04 (Wake on Touch not supported on Linux)
• WLAN / BT: Supported via optional modules (M.2 2230 E-Key for Wi‑Fi)
• Mechanical — Dimension: 446 x 370 x 77 mm
• Mechanical — Cut out: 431 x 333 mm
• Mechanical — Weight: 7.0 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Aluminum die-cast housing
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• IO Ports — USB: 2 x USB 3.2 Gen2x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• IO Ports — LAN: 2 x 2.5 Giga LAN RJ45
• IO Ports — Video: 1 x HDMI 2.0 (optional)
• IO Ports — Audio: 2 x Speaker
• Expansion — Storage: 1 x M.2 2280 M-Key slot for NVMe SSD
• Expansion — Wireless: 1 x M.2 2230 E-Key slot for Wi‑Fi module
• Indicators: 1 x LED for power; 1 x LED for storage
• Brightness adjustment: 1 x brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power — Power Rating: 12V DC
• Power — Adapter: 12V 120W (included as adapter option)
• Control — Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: 100–240V AC to DC adapter; power cord; VESA screws; mounting clips
