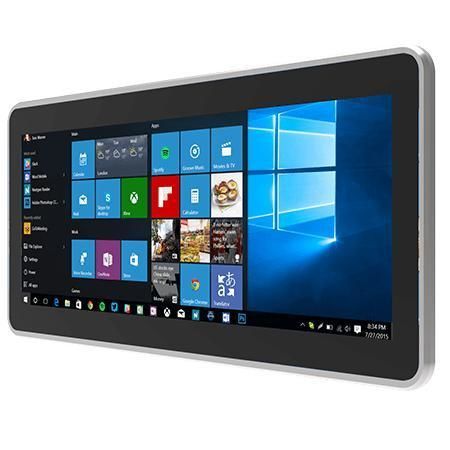

Multitouch screen panel PC W15IE3S-PPB2

PCAP capacitive touch screen14.9"1920 x 720

Overview
Winmate W15IE3S-PPB2 is a 14.9-inch PP Series HMI Panel PC powered by Intel® Celeron® N6211 (default). It is engineered for machine control, factory automation and operator HMI applications that require stable hardware integration, reliable field operation and long lifecycle availability.

Key features

• 14.9” 1920 x 720 projected capacitive (PCAP) multi-touch display
• Front IP65 water and dust protection
• Dual Gigabit Ethernet (2 x RJ45)
• Fanless cooling system and ultra-low power consumption
• Optional WLAN / Bluetooth and TPM 2.0 support

Certifications

• Front IP65
• FCC
• CE

Product details
The unit features a bezel-free open-frame 14.9" display with 950 nits brightness and an active area of 355.68 × 133.38 mm. I/O includes 1 x USB3.2 Gen1 Type-A, 1 x USB2.0 Type-A, 2 x Gigabit LAN RJ45, serial ports (1 x RS232/422/485 default + 1 x RS232), HDMI 1.4 (optional) and VGA input options. Storage and memory are configurable: M.2 2242 B-key SSD (128 GB default, up to 512 GB), optional SATA III for 2.5" SSD/HDD up to 1 TB, and 1 x SO-DIMM DDR4 (4 GB default, up to 16 GB). The metal enclosure supports panel and VESA mounting; the fanless architecture provides silent, reliable operation for industrial environments. Multiple OS options and accessories (AC-DC adapter, power cord, VESA screws, mounting clips) are available.

Technical specifications

• Model: W15IE3S-PPB2
• Display size/type: 14.9 inches, Projected Capacitive (PCAP) Multi Touch
• Resolution: 1920 x 720
• Brightness: 950 nits
• Contrast ratio: 1000:1
• View angles: 85/85/85/85
• Active area: 355.68 × 133.38 mm
• Processor (default): Intel® Celeron® N6211 (up to 3.0 GHz); optional N6210
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4 GB default; optional 8 GB, 16 GB)
• Storage: 1 x M.2 2242 B-key SSD 128 GB default (optional up to 512 GB); optional 1 x SATA III for 2.5" SSD/HDD up to 1 TB
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 1 x USB3.2 Gen1x1 Type-A; 1 x USB2.0 Type-A
• Video: 1 x HDMI 1.4 (optional); VGA input supported
• Audio: 2 x Speaker
• Expansion: 1 x mPCIe (half-size WiFi) optional; 1 x Mini PCIe optional; 1 x M.2 2242
• Indicators/controls: Power LED, Storage LED, Power button, Reset button, Brightness adjustment knob
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional via mini PCIe / mPCIe module
• Dimensions: 400.1 x 187.6 x 59 mm; Cut-out: 378.1 x 164.6 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Power input: 1 x 12V DC, 2.5φ DC jack; Adapter: 12V 50W
• IP rating: Front IP65
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
