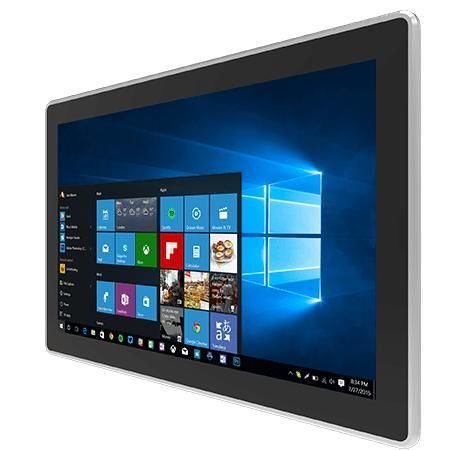

Multitouch screen panel PC W24IT7T-PPA2

PCAP capacitive touch screen24"1920 x 1080

Overview
Winmate W24IT7T-PPA2 is a 24-inch PP Series HMI panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI applications. It is targeted at industrial buyers, OEMs and system integrators who require reliable, integration-friendly hardware with front IP65 protection and fanless operation for embedded or mission-critical environments.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 1920 x 1080 (Full HD) resolution
• Projected capacitive multi-touch (PCAP) display
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Rich I/O: serial ports, USB 3.2 Gen ports, Gigabit & 2.5G LAN, audio, video
• Front IP65 water and dust protection
• Aluminum die-cast housing and fanless thermal design
• Single 12V DC power input (Din4)

Product details and highlights
The PP Series flat-front design allows easy cleaning and low dust accumulation at edges, suitable for industrial control panels and operator stations. PCAP multi-touch delivers accurate multi-finger input for operator workflows. Front IP65 rating protects against dust and splashes while a metal (aluminum) housing and fanless thermal concept ensure silent, maintenance-free operation. Extensive I/O and expansion options support industrial IoT connectivity and flexible integration with serial equipment, USB peripherals, LAN networks and video outputs.

Certifications

• CE
• FCC

Technical specifications

• Model: W24IT7T-PPA2
• Brand: Winmate
• Series: PP Series HMI
• Display size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89/89/89/89
• Active area: 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7E with vPro
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45 (2 x Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (Linux does not support Wake on Touch)
• Wireless: Optional WLAN/Bluetooth (M.2 2230 E-Key)
• Mechanical dimensions: 604 x 373 x 75 mm; Cut-out: 583 x 353 mm; Weight: 8.7 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Aluminum die-cast metal housing; Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• IO Ports - USB: 4 x USB 3.2 Gen2x1 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• IO Ports - LAN: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45
• IO Ports - Video: 1 x DisplayPort 1.4 (default), 1 x HDMI 2.0 (optional)
• IO Ports - Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & controls: LED power, LED storage, brightness adjustment knob, power and reset buttons
• Power input: 1 x 12V DC Din4 pin connector; Power adapter: 12V 120W (accessory)
• Accessories: Power cord, VESA screws, mounting clips
• Suitable applications: machine control, factory automation, operator HMI, industrial IoT solutions requiring robust I/O and front IP65 protection
