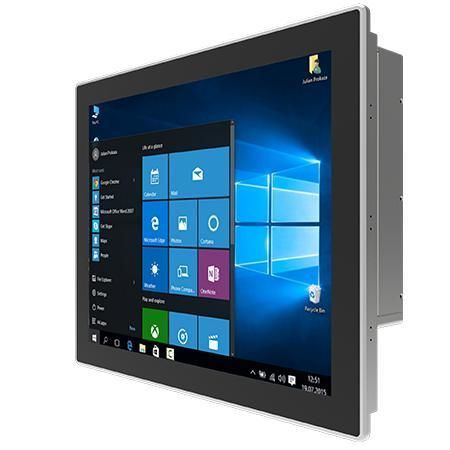

Multitouch screen panel PC R19IP7T-PPM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IP7T-PPM1 is a 19-inch PP Series HMI Panel PC powered by Intel® Pentium® Apollo Lake N4200 (1.10 GHz, burst up to 2.5 GHz). It is designed for machine control, factory automation and operator HMI applications. The unit combines a true-flat slim front with front IP65 protection, fanless cooling and an aluminum housing for industrial deployments.

Key Features

• 19" display, 1280 x 1024 resolution with PCAP multi-touch
• Intel® Pentium® N4200 processor (1.10 GHz, up to 2.5 GHz)
• Fanless cooling and low power consumption
• Front IP65 water and dust protection
• Aluminum die-cast housing with true-flat slim design
• Rich I/O for industrial IoT connectivity (USB, serial, dual Gigabit LAN, video, audio)
• Suitable for room booking, access control and room information display

Design & Operation
The PP Series features a truly flat front and slim profile for easy cleaning and panel integration. Projected capacitive (PCAP) multi-touch ensures accurate, multi-gesture input for operator interfaces and interactive applications.

Ruggedness & I/O
Front IP65 rating provides dust-tight and splash protection. The system offers multiple USB 3.2 ports, serial interfaces, dual Gigabit RJ45, DisplayPort (HDMI/VGA optional), audio connectors and expansion slots (M.2, PCIe) to support storage and wireless modules. The aluminum die-cast enclosure provides corrosion resistance and mechanical durability for industrial environments.

Certifications

• CE
• FCC

Technical specifications

• Display: 19.0"; PCAP multi-touch; 1280 x 1024; 250 nits; 1000:1; Active area 376.32 x 301.06 mm
• CPU: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Gigabit Ethernet
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 20.04 optional
• Dimensions: 446 x 370 x 78 mm; Cut-out: 431 x 333 mm; Weight: 6.9 kg
• Mounting: Panel mount (standard); VESA optional
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing; Front IP65
• IO: 4 x USB3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x Gigabit RJ45; 1 x DP1.2 (HDMI/VGA optional); Audio: Mic-in, Line-out, 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Power: 1 x 12V DC (Din4); Adapter 12V 84W
• Accessories: 100~240V AC‑DC adapter, power cord, VESA screws, mounting clips
