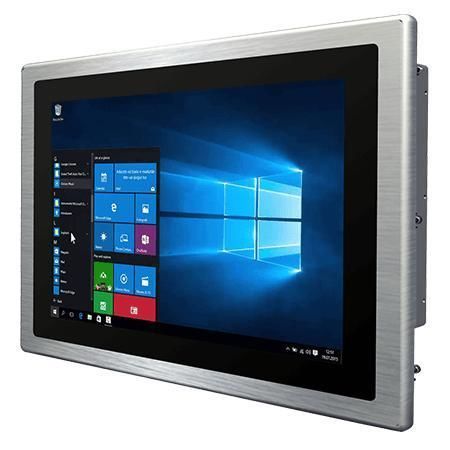

Multitouch screen panel PC W15IAD3S-PPA4

PCAP capacitive touch screen15.6"1920 x 1080

AI Summary
Winmate W15IAD3S-PPA4 is a 15.6-inch Intel® Core™ i5-1235U PP Series HMI Panel PC designed for machine control, factory automation, and operator HMI. It targets industrial buyers, OEMs, and system integrators requiring reliable, rugged hardware with long lifecycle availability and stable hardware integration.

Key Features

• 15.6-inch 1920 x 1080 resolution with Projected Capacitive (PCAP) multi-touch screen
• 12th Gen Intel® Core™ i5-1235U processor (3.3 GHz base, up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32 GB
• Integrated dual 2.5 Gigabit Ethernet controllers
• Multiple I/O: 2 x USB 3.2 Gen2x1, serial ports (RS232/422/485), LAN, video and audio
• Front-side IP65 protection (water and dust proof)
• Aluminum die-cast housing and fanless design
• 12 V DC power input

Overview / Product Details
The PP Series HMI Panel PC features a true-flat surface and slim profile to simplify installation, cleaning and maintenance. The projected capacitive multi-touch (PCAP) display delivers accurate on-screen control suited to industrial operator stations.

Front IP65 sealing protects the display and front controls from dust and splashes, extending deployment options in demanding environments. The aluminum housing provides corrosion resistance and mechanical durability while the fanless architecture reduces moving parts for industrial uptime.

Rich I/O and expansion options (serial ports, USB, dual 2.5G LAN, M.2 slots for NVMe and Wi‑Fi) enable broad IIoT integration, peripheral connectivity and flexible system configurations for OEM and integrator use.

Certifications
CE, FCC

Characteristics / Technical Specifications

• Model: W15IAD3S-PPA4
• Display - Size: 15.6 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Brightness: 300 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85/85/85/85
• Display - Active Area: 344.16 x 193.59 mm
• System - Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• System - Memory: 8 GB (default); options 16 GB, 32 GB; 1 x SODIMM DDR5 4800MHz, up to 32 GB
• System - Storage: 128 GB SSD (default); options 256/512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller (dual 2.5 Giga LAN)
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• System - WLAN: Optional (via M.2 2230 E-Key)
• System - Bluetooth: Optional
• Mechanical - Dimensions: 415 x 275 x 71 mm
• Mechanical - Cut out: 374.5 x 240 mm
• Mechanical - Weight: 3.9 kg
• Mechanical - Mounting: Panel mount (default); VESA mount (optional)
• Mechanical - Enclosure: Aluminum metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• IO Ports - USB Port: 2 x USB 3.2 Gen2x1 (Type-A)
• IO Ports - Serial Port: 1 x RS232/422/485 (default RS232) + 1 x RS232
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45
• IO Ports - Video: 1 x HDMI 2.0 (optional)
• IO Ports - Audio: 2 x speakers
• IO Ports - Expansion Port: 1 x M.2 2280 M-Key (for NVMe SSD); 1 x M.2 2230 E-Key (for Wi‑Fi module)
• IO Ports - Indicator: 1 x LED for power; 1 x LED for storage
• Control - Button: 1 x Power Button; 1 x Reset Button
• Control - Brightness Knob: 1 x Brightness Adjustment Knob
• Power - Power Input: 1 x 12V DC, 2.5φ DC jack
• Power - Adapter: 12V 120W
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
