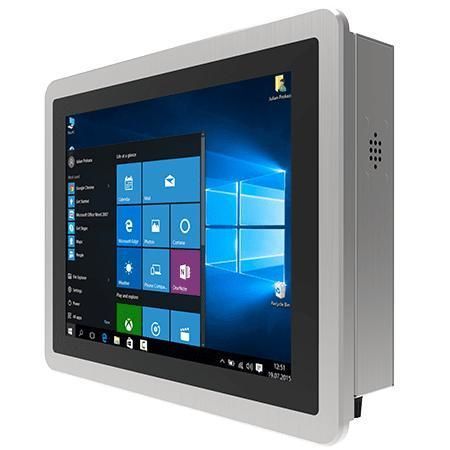

Multitouch screen panel PC R12IT3S-PPM2

PCAP capacitive touch screen12.1"1024 x 768

Overview
Winmate R12IT3S-PPM2 is a 12.1-inch PP Series HMI panel PC powered by an Intel® Core™ i5-1135G7. Designed for machine control, factory automation and operator HMIs, it offers fanless cooling, front IP65 protection, an aluminum enclosure and flexible I/O and storage options for industrial deployments and OEM integration.

Key Features

• 12.1-inch LCD with projected capacitive (PCAP) multi-touch
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power operation
• Front IP65 water and dust protection
• Aluminum die-cast housing for corrosion resistance
• Rich I/O for industrial IoT: serial, USB, LAN, video, audio; expansion slots for NVMe and Wi‑Fi
• Applications: machine control, factory automation, room booking/AV panels, access control and information displays

Highlights

• True flat front and slim bezel for easy cleaning and hygienic installations
• PCAP multi-touch supporting multi-gesture operations
• Front IP65 rating for dust- and splash-protected sites
• Dual 2.5Gb LAN and configurable serial ports for industrial networks and IoT gateways
• Fanless, robust metal housing for reliable operation in harsh environments

Certifications

• CE
• FCC

Technical specifications

• Model: R12IT3S-PPM2
• Display: 12.1 inches; Projected Capacitive Multi-Touch; Resolution 1024 x 768; Brightness 500 nits; Contrast 1000:1; Active area 245.76 x 184.32 mm
• System: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); Memory 4 GB (default), options 8/16/32 GB; Storage 128 GB SSD (default), options up to 4 TB; optional 1 x SATA III for 2.5" drives
• Networking & Security: 2 x Intel® 2.5G LAN RJ45; TPM 2.0; optional WLAN/BT (M.2 2230 E-Key)
• Mechanical: Dimensions 322 x 256 x 74 mm; Cut-out 302 x 237 mm; Weight ~2.6 kg; Panel mount (default), VESA optional; Metal housing
• Environment: Operating temperature 0°C to 50°C; Storage -10°C to 60°C; Operating humidity 10%–90% RH non-condensing; Front IP65
• I/O: 2 x USB3.2 Gen2 Type-A; 1 x RS232/422/485 (configurable) + 1 x RS232; 1 x HDMI 2.0 (optional); 2 x speakers; 1 x M.2 2280 M-Key (NVMe); indicators: power and storage; brightness knob
• Controls & Power: 1 x Power button, 1 x Reset button; Power input 12V DC (2.5φ); Adapter 12V 120W
• Accessories: 100~240V AC-DC adapter, power cord, VESA screws, mounting clips
