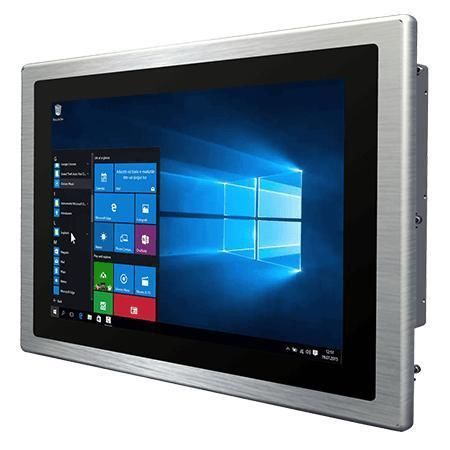

Multitouch screen panel PC W15IT3S-PPA4

LCDPCAP capacitive touch screenLED backlight

Overview
Winmate W15IT3S-PPA4 is a 15.6-inch PP Series HMI Panel PC engineered for machine control, factory automation and operator interfaces. It integrates an Intel® Core™ i5-1135G7 processor, projected capacitive (PCAP) multi-touch display, fanless cooling, front IP65 protection and an aluminum housing for industrial deployment.

Key Features

• 15.6” LED LCD with Projected Capacitive multi-touch
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• Front IP65 water and dust protection
• Aluminum/metal housing with true-flat slim surface
• Rich I/O: serial, USB 3.2 Gen2, 2 x 2.5G LAN, HDMI (optional), audio, M.2 expansion

Product Highlights
Real flat surface and slim design: True-flat front simplifies cleaning and reduces dust accumulation on edges.

Convenient onscreen operations with PCAP Multi-Touch: Projected capacitive touch provides precise, multi-finger input and smooth gesture support for operator workflows.

Front IP65 protection: IP65-rated front panel prevents dust ingress and protects against splashes for reliable operation in demanding environments.

Rich I/O for IoT connectivity: Multiple high-performance interfaces support industrial networking, serial control and peripheral integration for IoT applications.

Suitable for industrial automation: Aluminum die-cast enclosure and fanless thermal design support continuous operation in factory and plant environments.

Certifications

• CE
• FCC

Technical specifications

• Model: W15IT3S-PPA4
• Display - Size: 15.6 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Brightness: 300 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85/85/85/85
• Display - Active Area: 344.16 x 193.59 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); optional 8GB/16GB/32GB
• Storage: 128GB SSD (default); optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: Optional (M.2 2230 E-Key slot)
• Mechanical - Dimensions: 415 x 275 x 71 mm
• Mechanical - Cut out: 374.5 x 240 mm
• Weight: 3.9 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal / Aluminum housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Front IP rating: IP65
• IO Ports: 2 x USB3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x HDMI 2.0 (optional); Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: 1 x LED Power, 1 x LED Storage
• Brightness control: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack; Adapter: 12V 120W
• Buttons: 1 x Power Button, 1 x Reset Button
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
