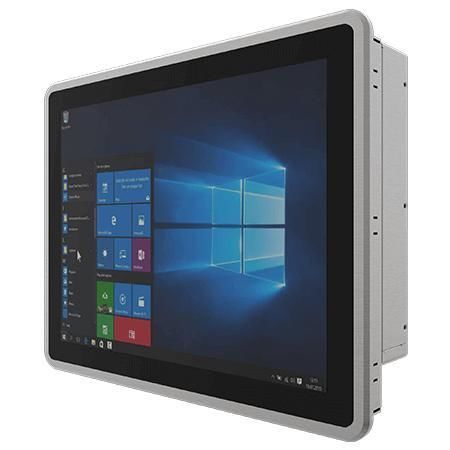

Multitouch screen panel PC R15IAD3S-PPC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IAD3S-PPC3 is a 15-inch PP Series HMI Panel PC engineered for machine control, factory automation and operator HMI applications. It integrates a 15-inch 1024 x 768 projected capacitive (PCAP) multi-touch display, 12th Gen Intel® Core™ i5-1235U processor, front IP65 sealing, aluminum die-cast housing, fanless cooling and a comprehensive set of industrial I/O for IIoT connectivity.

Key Features

• 15-inch 1024 x 768 Projected Capacitive (PCAP) multi-touch display
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32 GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/O: 2 x USB 3.2 Gen2x1, serial ports, LAN, video and audio
• Front-side IP65 protection against dust and water splashes
• Aluminum die-cast enclosure and fanless design
• 12 V DC power input

Product Highlights

• True-flat front and slim profile for flush panel integration and easy cleaning
• PCAP multi-touch for responsive on-screen control in industrial HMI workflows
• Front IP65 sealing to maintain operation in dusty or splash-prone environments
• Rich I/O including serial, USB, dual 2.5GbE, video and audio for flexible IIoT and controller connectivity
• Durable aluminum die-cast housing suitable for long lifecycle deployment

Certifications

• CE
• FCC

Technical specifications

• Model: R15IAD3S-PPC3
• Display — Size: 15.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display — Resolution: 1024 x 768
• Display — Brightness: 300 nits
• Display — Contrast Ratio: 2000:1
• Display — Viewing Angles: 88/88/88/88
• Display — Active Area: 304.1 x 228.1 mm
• System — Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• System — Memory: 8 GB (default); optional 16 GB, 32 GB; 1 x SODIMM DDR5 4800MHz
• System — Storage: 128 GB SSD (default); options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional); 1 x M.2 2280 M-Key (NVMe)
• System — Ethernet: Integrated dual Intel® 2.5 Gigabit Ethernet
• System — Security: TPM 2.0
• System — OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Wireless — WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Mechanical — Dimensions: 367 x 291 x 73.8 mm
• Mechanical — Cut-out: 360 x 261 mm
• Mechanical — Weight: 4.8 kg
• Mechanical — Mounting: Panel mount (default); VESA mount (optional)
• Enclosure — Material: Aluminum die-cast
• Cooling — Fanless design
• Environment — Operating Humidity: 10% to 90% RH non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — Front IP rating: IP65
• IO Ports — USB: 2 x USB 3.2 Gen2x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• IO Ports — LAN: 2 x 2.5 Giga LAN RJ45
• IO Ports — Video: 1 x HDMI 2.0 (optional)
• IO Ports — Audio: 2 x speakers
• IO Ports — Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators / Controls: Power LED, Storage LED, 1 x Brightness adjustment knob, Power and Reset buttons
• Power — Input: 1 x 12 V DC, 2.5φ DC jack
• Power — Adapter: 12 V 120 W (accessory)
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
• Certification: CE, FCC
