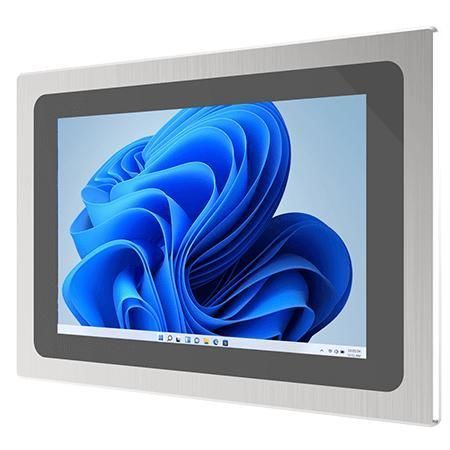

Multitouch screen panel PC W10IAN3S-PPH2

TFT LCDPCAP capacitive touch screen10.1"

AI Summary
Winmate W10IAN3S-PPH2 is a 10.1-inch PP Series HMI Panel PC designed for machine control, factory automation, and operator HMI. It provides dependable computing and visual performance for automation and monitoring applications, suitable for industrial buyers, OEMs, and system integrators requiring rugged, long-lifecycle hardware integration.

Key Features

• 10.1” WXGA TFT LCD with PCAP multi-touch
• Intel® Alder Lake‑N processors (N100 default, N150 optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet controllers
• Multiple USB, COM ports and optional HDMI
• Front IP65 panel; panel mount (default) and VESA (optional)

Overview — High performance made simple and scalable
The Winmate PP Series HMI Panel PC, built with Intel® N‑series processors and integrated UHD Graphics, delivers reliable computing and smooth graphics rendering for automation and monitoring. It supports precise control and real‑time data processing for stable industrial operation.

Overview — Clear visuals with WXGA TFT LCD
The 10.1” WXGA TFT provides crisp industrial visuals and readable operator HMI in compact installations. PCAP multi‑touch ensures intuitive interaction on the production floor.

Overview — Versatile I/O for seamless integration
Designed for flexibility, the unit offers comprehensive I/O connectivity including USB‑C (DP‑Alt), multiple USB Type‑A ports, configurable serial ports, optional HDMI, dual 2.5GbE and expansion for Wi‑Fi modules to integrate with PLCs, sensors and peripherals.

Overview — High‑speed connectivity
Dual 2.5 Gigabit Ethernet ports provide stable, higher‑bandwidth communication for real‑time industrial networks and improved throughput.

Technical specifications

• Display — Size: 10.1 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1280 x 800 (WXGA)
• Display — Brightness: 350 nits
• System — Processor: Intel® N100 (default) / Intel® N150 (optional)
• System — Memory: 4 GB (default); options 8 GB, 16 GB (1 x SO‑DIMM DDR5‑4800)
• System — Storage: 128 GB SSD (default); options up to 4 TB; 1 x SATA III for 2.5" drive (if NVMe not present)
• Network — 2 x Intel® 2.5 Gigabit Ethernet
• Security — TPM 2.0
• OS — Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 24.04 (optional)
• Expansion — 1 x M.2 2230 E‑Key (Wi‑Fi option)
• Mechanical — Dimensions: 295 x 200 x 53 mm; Cut out: 240 x 165 mm; Weight: 1.9 kg
• Mounting — Panel mount (default); VESA mount (optional)
• Enclosure — Metal housing; Fanless design
• Environment — Operating temp: 0°C to 50°C; Humidity: 10%–90% RH (non‑condensing)
• IP Rating — Front IP65
• IO Ports — USB: USB 3.2 Gen1 Type‑A, USB 3.2 Gen2 Type‑C (DP Alt); Serial: RS232/422/485; LAN: 2 x 2.5 GbE; Video: HDMI 2.0b (optional)
• Power — 1 x 12V DC (2.5φ jack); Adapter: 12V 50W (accessory)
• Certifications — CE, FCC
