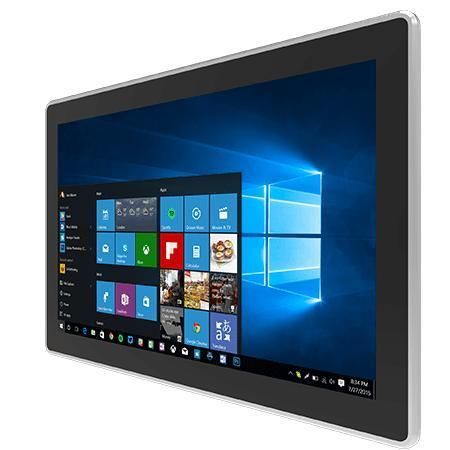

Multi-touch screen panel PC W24IT3S-PPA2

LCDPCAP capacitive touch screen24"

Overview The Winmate W24IT3S-PPA2 is a 24-inch PP Series HMI Panel PC designed for machine control, factory automation and operator HMI applications. It pairs a Full HD projected-capacitive multi-touch display with an Intel® Core™ i5-1135G7 CPU, fanless cooling and a metal die-cast housing for reliable field operation.

Key Features

• 24-inch 1920 x 1080 PCAP multi-touch display
• Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Fanless thermal design and low power consumption
• Front protection IP65 (water and dust)
• Aluminum die-cast enclosure
• Application-ready functions: room booking, access control, room info display

Design and User Experience The PP Series provides a true flat surface and slim bezel for easy cleaning and panel integration. The PCAP multi-touch supports precise onscreen operation and multi-finger gestures to improve operator interaction in industrial HMI environments.

Connectivity and I/O Multiple industrial I/O enable IoT and system integration: serial ports, 2 x USB 3.2 Gen2, dual 2.5G LAN, optional HDMI, audio, M.2 slots for NVMe SSD and wireless modules.

Certifications CE and FCC.

Technical specifications

• Display: 24.0 inches; Resolution 1920 x 1080; Brightness 250 nits; Contrast 3000:1; Active area 527.04 x 296.46 mm
• Processor: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 4GB default (options: 8GB/16GB/32GB)
• Storage: 128GB SSD default (options up to 4TB); optional 1 x SATA III for 2.5" HDD/SSD
• Ethernet: 2 x Intel® 2.5G LAN
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (Linux no Wake on Touch)
• Dimensions: 604 x 373 x 76 mm; Cut-out 583 x 353 mm; Weight 8.9 kg; Panel mount (VESA optional)
• Environment: Operating 0°C to 50°C; Humidity 10%–90% RH non-condensing; Front IP65
• I/O: 2 x USB3.2 Gen2 Type-A; 1 x RS232/422/485 + 1 x RS232; 2 x 2.5G RJ45; 1 x HDMI 2.0 (optional); 2 x Speaker; 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power: 1 x 12V DC input (2.5φ); Adapter 12V 120W
• Accessories: 100~240V AC–DC adapter, power cord, VESA screws, mounting clips
