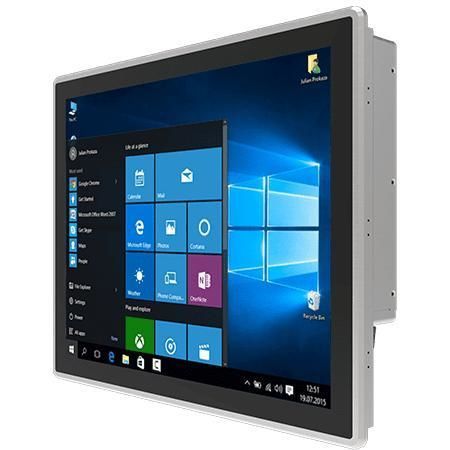

Multitouch screen panel PC R17IP7T-PPM1

PCAP capacitive touch screen17"1280 x 1024

Overview
Winmate R17IP7T-PPM1 is a 17-inch PP Series HMI Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI, it features a true-flat slim front, front IP65 protection, fanless cooling and an aluminum die-cast housing for reliable operation in industrial environments.

Key Features

• 17" display, 1280 x 1024 resolution, 350 nits brightness
• Projected capacitive (PCAP) multi‑touch screen
• Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Fanless cooling and low power consumption
• Front IP65 water and dust protection
• Aluminum die‑cast housing and true‑flat slim design
• Rich I/O for industrial IoT connectivity (serial, USB, dual Gigabit LAN, video, audio)
• Typical applications: machine control, factory automation, operator HMI, room booking/access control displays

Certifications

• CE
• FCC

Product Highlights / Features - Detailed
True‑flat surface and slim profile: The flat front reduces dust buildup and simplifies cleaning for panel integration.

PCAP multi‑touch for operator input: Projected capacitive touch provides responsive, accurate multi‑touch interaction for operator interfaces.

Front IP65 protection: Front panel rated IP65 to resist dust ingress and water splashes in harsh environments.

Extensive I/O for system integration: Multiple USB, serial ports, dual Gigabit LAN, DP/HDMI/VGA options and audio ports enable flexible integration with controllers and IoT devices.

Industrial‑grade housing: Aluminum die‑cast enclosure provides corrosion resistance and long lifecycle for factory and vertical applications.

Technical specifications

• Display
  • Size: 17.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1280 x 1024
  • Panel Brightness: 350 nits
  • Contrast Ratio: 1000:1
  • View Angles: 85/85/80/80
  • Active Area: 337.920 x 270.336 mm
• System Specification
  • Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
  • Memory: Dual‑channel SO‑DIMM (non‑ECC) up to 16 GB
  • Storage: 128 GB SSD default; options 256 GB / 512 GB / 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional, RAID support)
  • Ethernet: 2 x Intel® Gigabit Ethernet
  • Security: TPM 2.0
  • OS: Windows 10 IoT Enterprise (64‑bit) optional; Linux Ubuntu optional
  • WLAN/BT: Optional via M.2 Wi‑Fi module
• Mechanical
  • Dimensions: 393 x 323 x 78 mm
  • Cut out: 373 x 305 mm
  • Weight: 5.6 kg
  • Mounting: Panel mount (default); VESA mount optional
  • Enclosure: Aluminum die‑cast housing
  • Cooling: Fanless design
• Environment
  • Operating Humidity: 10% to 90% RH, non‑condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Front IP Rating: IP65
• IO Ports
  • USB: 4 x USB 3.2 Gen1 Type‑A
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • LAN: 2 x Gigabit RJ45
  • Video: 1 x DP 1.2 (default); HDMI 1.4 (optional); VGA (optional)
  • Audio: Mic in; Line out; 2 x Speaker
  • Expansion: 1 x M.2 2242 B‑key (SATA III), 1 x M.2 2230 E‑key (Wi‑Fi), 1 x PCIe 2.0 x1
  • Indicators: Power LED; Storage LED; Brightness adjustment knob
  • Power Input: 1 x 12V DC (Din4 pin)
• Control
  • Buttons: Power button; Reset button
• Accessories
  • 100~240V AC to DC adapter
  • Power cord
  • Driver CD & manual
  • VESA screws and mounting clips
• Power
  • Power rating: 12V DC
  • Adapter: 12V 84W
