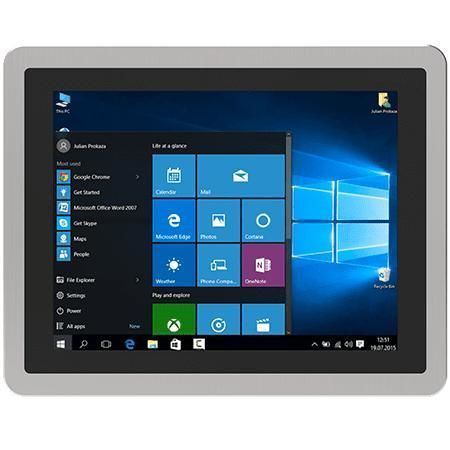

Multitouch screen panel PC R12IT7T-PPM2

PCAP capacitive touch screen12.1"1024 x 768

Summary
Winmate R12IT7T-PPM2 is a 12.1″ PP Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake). Designed for machine control, factory automation and operator HMI, it provides rugged industrial performance, long lifecycle availability and reliable hardware integration for OEMs and system integrators.

Key Features

• 12.1″ display with 1024 x 768 resolution and 500 nits brightness
• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or Intel® Core™ Tiger Lake UP3 i5-1145G7E (with vPro)
• Projected capacitive (PCAP) multi-touch screen
• Fanless cooling system
• Front IP65 water and dust proof
• Aluminum housing and fanless design
• Rich I/O for industrial IoT connectivity

Overview / Design and Operation
The PP Series HMI panel PC features a true-flat surface and slim design for easy cleaning and maintenance. The projected capacitive multi-touch screen delivers precise on-screen operations and an improved user experience. Front IP65 protects against dust and water splashes for challenging industrial environments. A wide range of I/O (serial, USB, LAN, video, audio) enables flexible integration into automation and IoT systems. The aluminum die-cast housing ensures corrosion resistance and mechanical durability.

Certifications

• CE
• FCC

Application Highlights

• Machine control and factory automation
• Operator HMI in mission‑critical or harsh environments
• Integration in IoT-enabled industrial solutions

Technical Specifications

• Display — Size: 12.1″
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1024 x 768
• Display — Panel Brightness: 500 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 89, 89, 89, 89
• Display — Active Area: 245.76 x 184.32 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); option i5-1145G7E
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: Support (optional)
• Mechanical — Dimension: 322 x 256 x 79 mm
• Mechanical — Cut out: 302 x 237 mm
• Mechanical — Weight: 2.7 kg
• Mechanical — Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Aluminum die-cast housing
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — IP rating: Front IP65
• IO Ports — USB: 4 x USB 3.2 Gen2x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• IO Ports — LAN: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45)
• IO Ports — Video: 1 x DP 1.4 (default); 1 x HDMI 2.0 (optional)
• IO Ports — Audio: Mic in; Line out
• Expansion — 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi module); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators — 1 x LED for power; 1 x LED for storage
• Brightness Control — 1 x Brightness Adjustment Knob
• Power Input: 1 x 12 V DC, DIN4 pin connector
• Buttons / Controls: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws; mounting clips
• Power Rating / Adapter: 12 V DC; adapter 12 V 120 W
