Multitouch screen panel PC W22IT7T-PPA3
PCAP capacitive touch screen21.5"1920 x 1080

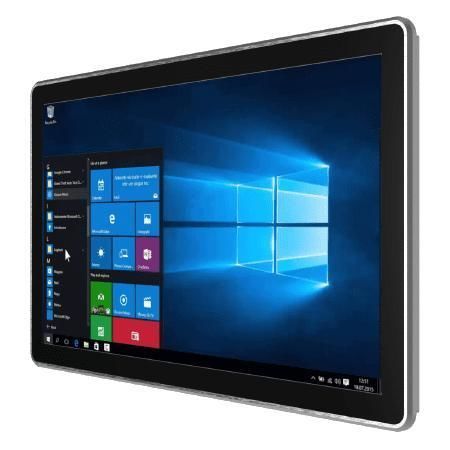

Multitouch screen panel PC - W22IT7T-PPA3 - Winmate, Inc. - PCAP capacitive touch screen / 21.5" / 1920 x 1080
Multitouch screen panel PC - W22IT7T-PPA3 - Winmate, Inc. - PCAP capacitive touch screen / 21.5" / 1920 x 1080
Multitouch screen panel PC - W22IT7T-PPA3 - Winmate, Inc. - PCAP capacitive touch screen / 21.5" / 1920 x 1080 - image - 2
Multitouch screen panel PC - W22IT7T-PPA3 - Winmate, Inc. - PCAP capacitive touch screen / 21.5" / 1920 x 1080 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
21.5"
Resolution
1920 x 1080
Processor
11th Generation Intel® Core™, Intel® Core™ i5-1135G7, Intel® Core™ i5-1135G7, Intel® Tiger Lake-U
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise
Construction
fanless, aluminum frame, in metal housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
HMI, Ethernet, RJ45, WiFi
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
The W22IT7T-PPA3 is a 21.5" PP Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake). It is designed for machine control, factory automation and operator HMI applications requiring a flat-panel installation, front IP65 protection and industrial I/O connectivity.

Key features
  • Intel® Core™ Tiger Lake UP3: i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
  • 21.5" FHD display (1920 x 1080) with PCAP multi-touch
  • Front panel rated IP65 (water and dust protection)
  • Multiple display interfaces: DisplayPort / HDMI / LVDS / eDP
  • Rich I/O: serial ports, 4 x USB 3.2 Gen2 Type-A, Gigabit + 2.5GbE LAN, audio
  • Aluminum die-cast metal housing and fanless design
  • 12V DC single voltage input


Applications
  • Machine control panels and operator stations
  • Factory automation and process control systems
  • OEM embedded applications and system integration in harsh environments


Certifications
  • CE
  • FCC


Technical specifications (selection)
  • Model: W22IT7T-PPA3
  • Display size / Resolution: 21.5" / 1920 x 1080
  • Touch / Glass: Projected Capacitive (PCAP) multi-touch
  • Panel brightness / Contrast: 250 nits / 3000:1
  • Active area: 476.64 x 268.11 mm
  • Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz) or i5-1145G7E (vPro)
  • Memory: 2 x non-ECC SO-DIMM, up to 64 GB
  • Storage: 128 GB SSD default; optional 256/512 GB / 1/2/4 TB; 1 x SATA III for 2.5" drive (optional)
  • Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; 2 x Intel® Ethernet controllers
  • USB: 4 x USB 3.2 Gen2 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • Video: 1 x DisplayPort 1.4 (default), 1 x HDMI 2.0 (optional)
  • Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
  • Security: TPM 2.0
  • Power input / Adapter: 1 x 12V DC (Din4); adapter 12V 120W (accessory)
  • Mechanical dimensions / Cut out / Weight: 533 x 324 x 78 mm / 504 x 304 mm / 7.2 kg
  • Mounting: Panel mount (standard); VESA optional
  • Operating temp / Humidity: 0°C to 50°C / 10% to 90% RH (non-condensing)
  • IP rating: Front IP65
  • Indicators & controls: Power LED, Storage LED, Power button, Reset button, Brightness knob
  • Cooling: Fanless
