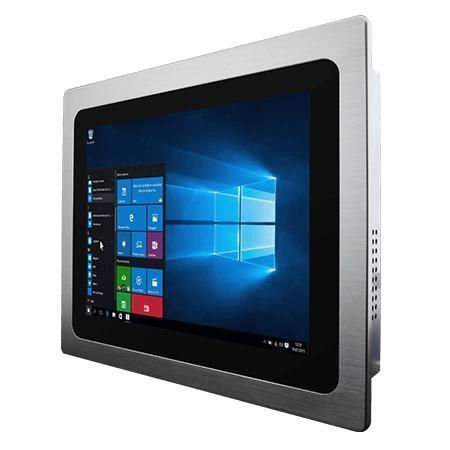

Multitouch screen panel PC R10IE3S-PPT2

PCAP capacitive touch screen10.4"1024 x 768

Overview
The Winmate R10IE3S-PPT2 is a 10.4-inch PP Series HMI Panel PC powered by an Intel® Celeron® N6211 processor. Built for machine control, factory automation and operator interfaces, it combines a true-flat PCAP multi-touch front, front IP65 protection, fanless thermal design and a metal die-cast housing for long-term industrial deployment.

Key features

• 10.4" 1024 x 768 display with 500 nits brightness and 1000:1 contrast
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Projected Capacitive (PCAP) multi-touch
• Front IP65 water- and dust-proof protection
• Dual 2.5 Giga LAN (2 x Intel® Ethernet Controller)
• Fanless cooling and ultra-low power consumption

Design & applications
True-flat, slim front for easy cleaning and hygienic installations. Panel-mount form factor is adapted for control cabinets, operator stations and OEM integration in industrial automation, food processing, packaging and machine building.

Connectivity & I/O

• 2 x USB 3.2 Gen2 Type-A, serial ports (RS232/422/485), 2 x 2.5 Giga LAN RJ45
• Optional HDMI 2.0, audio with 2 speakers, LED indicators and brightness adjustment knob
• M.2 expansion: 2242 B-Key (SATA SSD) and 2230 E-Key (Wi‑Fi module)

System & options

• Default 4 GB RAM (options: 8 GB, 16 GB) and 128 GB SSD (options up to 2 TB); 1 x SATA III for 2.5" drive (optional)
• TPM 2.0 security module; optional WLAN and Bluetooth
• Optional OS: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04

Certifications

• CE
• FCC

Technical specifications

• Display: 10.4 inches, 1024 x 768, Projected Capacitive Multi Touch, 500 nits, 1000:1, Active area 210.4 x 157.8 mm
• Dimensions & mounting: 284 x 252 x 55 mm; cut-out 262 x 220 mm; Panel mount (default), VESA optional; Weight 2.3 kg
• Processor & memory: Intel® Celeron® N6211 (up to 3.0 GHz); Memory 4 GB default (8/16 GB optional)
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB/2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x 2.5 Giga LAN (Intel® controllers)
• Ports: 2 x USB3.2 Gen2 Type-A; 1 x RS232/422/485 + 1 x RS232; 1 x HDMI 2.0 (optional); Audio 2 x Speaker
• Expansion & indicators: M.2 2242 B-Key; M.2 2230 E-Key; LED power & storage indicators; Brightness knob
• Power & environment: 12 V DC input (2.5φ jack); adapter 12 V 50 W; Operating 0°C to 50°C; Humidity 10%–90% RH non-condensing; Front IP65
