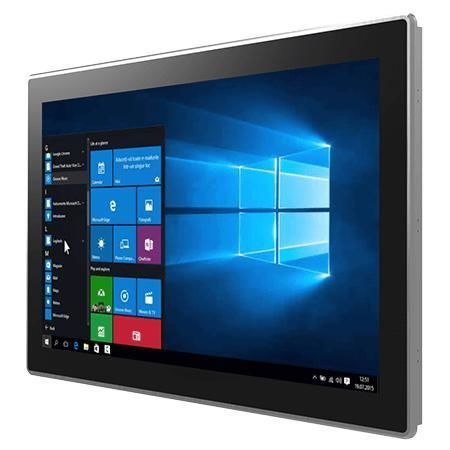

Multitouch screen panel PC W27IT7T-PPA1

PCAP capacitive touch screen27"1920 x 1080

Overview
The W27IT7T-PPA1 is a 27” PP Series HMI Panel PC powered by an Intel® Core™ i5-1135G7 (Tiger Lake). It is intended for machine control, factory automation and operator HMI tasks where reliable processing, extensive connectivity and low-maintenance operation are required. The unit features a true-flat slim front, aluminum die-cast housing and a fanless thermal design.

Highlights

• True-flat front and slim profile for panel integration and easy cleaning
• Projected capacitive (PCAP) multi-touch display for responsive on-screen control
• Front IP65 protection against dust and water splashes
• Rich I/O: serial ports, multiple USB 3.2 ports, Gigabit + 2.5G LAN, and video interfaces
• Aluminum housing, fanless operation and single 12V DC input

Key features

• Intel® Core™ i5-1135G7 (Tiger Lake) processor (2.4 GHz, up to 4.2 GHz)
• 27.0" display, 1920 x 1080 resolution, 300 nits
• Projected capacitive multi-touch
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/Os: 2 x serial ports, 4 x USB 3.2 Gen2x1 Type-A
• Front IP65 water and dust protection
• Aluminum die-cast housing and fanless design
• 12V DC input (Din4 pin connector)

Certifications

• CE
• FCC

Product details — functional overview
The PP Series HMI panel PCs combine industrial-grade display, processing and I/O to integrate with PLCs, sensors and factory networks. Expandable storage (NVMe, SATA), optional Wi‑Fi/Bluetooth modules and PCIe expansion enable flexible system architectures for automation and IIoT deployments.

Display

• Size: 27.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 300 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 597.6 x 336.15 mm

System specification

• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45 (Intel® controllers)
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Ubuntu)
• WLAN / Bluetooth: optional (M.2 module)

Mechanical

• Dimensions: 683 x 421 x 75.2 mm
• Cut out (panel mount): 666.2 x 400.4 mm
• Weight: 11.8 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Aluminum die-cast
• Cooling system: Fanless

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65

IO Ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: LED for power and storage; Brightness Adjustment Knob
• Power input: 1 x 12V DC Din4 pin connector

Control

• Buttons: 1 x Power Button, 1 x Reset Button

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Technical specifications (summary)

• Model: W27IT7T-PPA1
• Brand: Winmate
• Processor: Intel® Core™ i5-1135G7 (Tiger Lake)
• Display: 27", 1920 x 1080, 300 nits, PCAP multi-touch
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage: NVMe and SATA options (128 GB default; multiple TB optional)
• I/O: 4 x USB3.2 Gen2, serial ports (RS232/422/485), GigE + 2.5G LAN, DP/HDMI
• Expansion: M.2 NVMe, M.2 Wi‑Fi, PCIe 4.0 (x16 slot with x4 signal)
• Protection: Front IP65, aluminum housing, fanless
• Operating range: 0°C to 50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
