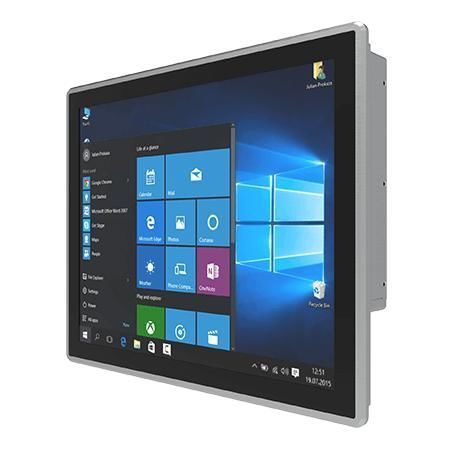

Multitouch screen panel PC R17IT7T-PPM1

PCAP capacitive touch screen17"1280 x 1024

Overview
The Winmate R17IT7T-PPM1 is a 17-inch PP Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI. It provides a true-flat slim aluminum front, projected capacitive (PCAP) multi-touch display, front IP65 protection, broad I/O connectivity and options for fanless operation and expandable storage and memory.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro)
• 17.0-inch display, 1280 x 1024 (SXGA) resolution
• Projected capacitive multi-touch (PCAP)
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/O: serial ports, 4 x USB 3.2 Gen2x1 (Type-A), Gigabit + 2.5 Gigabit LAN, audio, video
• Front panel IP65 for water and dust resistance
• Aluminum die-cast housing with slim true-flat design; fanless cooling option
• 12V DC single-voltage power input

Certifications

• CE
• FCC

Product Highlights

• True-flat front surface and slim profile for easy cleaning and integration into industrial panels.
• PCAP multi-touch supporting multi-finger gestures for efficient on-screen operation.
• Front IP65 rating to protect against dust ingress and water splashes in challenging environments.
• Rich I/O (serial, USB, LAN, video, audio) for industrial IoT connectivity and peripheral integration.
• Aluminum die-cast housing for corrosion resistance and long-term deployment in factory environments.

Technical Specifications

• Display: 17.0 inches; Projected Capacitive Multi Touch; Resolution 1280 x 1024; Brightness 350 nits; Contrast 1000:1; Viewing angles 85/85/80/80; Active area 337.920 x 270.336 mm
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key for NVMe SSD
• Ethernet: 2 x Intel® Ethernet controllers (1 x 1 GbE RJ45, 1 x 2.5 GbE RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported on Linux option)
• Wireless (optional): WLAN and Bluetooth via M.2 2230 E-Key slot
• Mechanical: Dimensions 393 x 325 x 78 mm; Cut-out 373 x 305 mm; Weight 5.9 kg; Metal housing; Mounting: Panel mount (default) / VESA mount (optional); Cooling: fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C; Front IP rating IP65
• I/O Ports: 4 x USB 3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 1 x Gigabit LAN + 1 x 2.5 Gigabit LAN; Video: 1 x DP1.4 (default) + 1 x HDMI 2.0 (optional); Audio: Mic-in and Line-out; Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & Controls: 1 x LED power indicator; 1 x LED storage indicator; 1 x brightness adjustment knob; Buttons: power and reset
• Power: 1 x 12V DC input (Din4 pin connector); Adapter 12V 120W (100~240V AC to DC) and power cord included
• Accessories: AC/DC adapter; power cord; VESA screws; mounting clips
