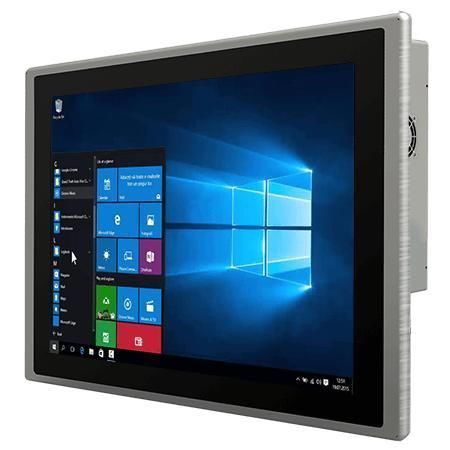

Multitouch screen panel PC R19IT7T-PPM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IT7T-PPM1 is a 19-inch PP Series HMI Panel PC powered by Intel® Core™ Tiger Lake i5 processors, designed for machine control, factory automation and operator HMI applications. It delivers stable hardware integration, dependable field operation, fanless cooling, front IP65 protection and long lifecycle availability for industrial buyers, OEMs and system integrators.

Key Features

• Intel® Core™ Tiger Lake UP3 processors: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 19.0" display with 1280 x 1024 resolution
• Projected capacitive (PCAP) multi-touch screen
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/O: 2 x Serial Ports, 4 x USB 3.2 Gen 1 (Type-A)
• Front IP65 water and dust protection
• Aluminum metal housing with slim, true-flat design; fanless operation
• 12V single-voltage DC power input

Design and Usability

• True-flat surface and slim profile for easy cleaning and maintenance in industrial control panels.
• Projected capacitive multi-touch provides a responsive multitouch onscreen experience for efficient operator interactions.
• Front IP65 rating: dust-tight front and splash protection for use in demanding industrial conditions.

Ruggedness and Installation

• Aluminum die-cast metal housing for corrosion resistance and extended field service life.
• Panel mount as default; VESA mount available as an option. Mounting clips and VESA screws included as standard accessories.

Connectivity and I/O

• Rich I/O for industrial IoT connectivity including multiple USB, serial ports, LAN, audio and video ports.
• Expansion options via M.2 and PCIe slots to support NVMe SSDs, Wi‑Fi modules and additional cards.

Operating Environment

• Operating humidity: 10% to 90% RH, non-condensing.
• Operating temperature: 0°C to 50°C. Storage temperature: -10°C to 60°C.

Certifications

• CE
• FCC

Technical specifications

• Display: 19.0 inches; Resolution 1280 x 1024; Panel brightness 250 nits; Contrast ratio 1000:1; Viewing angles 85/85/80/80; Active area 376.32 x 301.06 mm; Projected capacitive multi-touch.
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz). Optional i5-1145G7E with vPro where specified.
• Memory: 2 x non-ECC SO-DIMM slots, up to 64 GB total (32 GB per DIMM).
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key slot for NVMe SSD.
• Ethernet: 2 x Intel® Ethernet controllers (1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45).
• Security: TPM 2.0.
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (note: does not support Wake on Touch).
• Wireless: WLAN support optional via M.2 2230 E-Key slot; Bluetooth support optional.
• Mechanical: Dimensions 446 x 370 x 78 mm; Cut-out 431 x 333 mm; Weight 6.9 kg; Enclosure metal housing; Fanless design.
• IP rating: Front IP65.
• IO Ports: 4 x USB 3.2 Gen2x1 (Type-A); Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; Video: 1 x DP1.4 (default) and 1 x HDMI 2.0 (optional); Audio: Mic-in, Line-out.
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal).
• Indicators and Controls: 1 x LED for power; 1 x LED for storage; 1 x brightness adjustment knob; Buttons: 1 x power button, 1 x reset button.
• Power: 1 x 12V DC Din4 pin connector; Adapter 12V 120W; Accessories include 100~240V AC to DC adapter, power cord, VESA screws and mounting clips.
