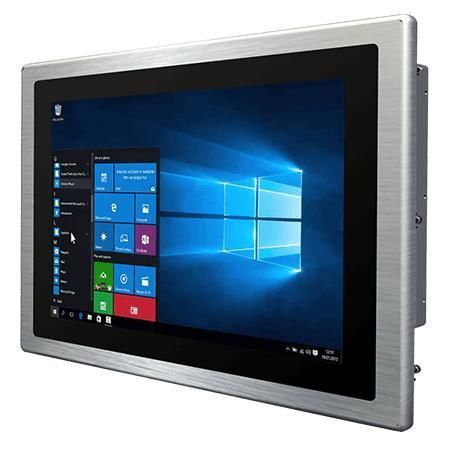

Multitouch screen panel PC W15IP7T-PPA4

LCDPCAP capacitive touch screen15.6"

Overview
Winmate W15IP7T-PPA4 is a 15.6-inch PP Series HMI Panel PC engineered for machine control, factory automation and operator interfaces. It combines an Intel® Pentium® N4200 processor, a projected capacitive (PCAP) multi-touch Full HD display, fanless cooling and a front IP65 rating in an aluminum die-cast housing for industrial environments.

Key Features

• 15.6" display, 1920 x 1080 resolution, 300 nits brightness
• Projected capacitive (PCAP) multi-touch screen
• Intel® Pentium® N4200 (Apollo Lake), 1.10 GHz base, up to 2.5 GHz burst
• Fanless design for low power and silent operation
• Front IP65 water and dust protection
• Aluminum / metal housing with true-flat slim front
• Rich I/O for industrial IoT connectivity (serial, USB, LAN, video, audio)

Product Highlights

• True-flat front and slim bezel for easy cleaning and hygienic installations
• Responsive PCAP multi-touch suitable for frequent operator interactions
• Front IP65 ensures dust resistance and splash protection in harsh environments
• Extensive I/O including dual Gigabit LAN, multiple USB3 ports, serial interfaces and video outputs
• Durable aluminum die-cast enclosure for corrosion resistance and long service life in industrial settings

Applications

• Machine control and factory automation panels
• Operator HMI and industrial control stations
• Information displays: room scheduling, access control, room information

Technical specifications

• Display Size: 15.6 inches; Resolution: 1920 x 1080; Brightness: 300 nits; Contrast: 800:1; View angles: 85/85/85/85
• Touch / Glass: Projected Capacitive Multi-Touch
• Processor: Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD (default); optional 256/512 GB / 1 TB; optional 2 x SATA III for 2.5" drives (RAID optional)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise 64-bit; Linux Ubuntu (options)
• WLAN / BT: optional via M.2 2230 E-Key
• Mechanical: 415 x 275 x 72 mm; Cut-out: 375 x 238 mm; Weight: 3.9 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Aluminum / metal housing; Cooling: Fanless
• Operating humidity: 10% to 90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Front IP rating: IP65; Certifications: CE, FCC
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (optional variants)
• Video: 1 x DP1.2 (default); HDMI 1.4 and VGA optional
• Audio: Mic in, Line out, 2 x speakers
• Expansion: 1 x M.2 2242 B-key (SATA SSD); 1 x M.2 2230 E-key (Wi‑Fi); 1 x PCIe 2.0 x1
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input: 1 x 12V DC (Din4); Adapter: 12V 50W (typical)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips, driver & manual
