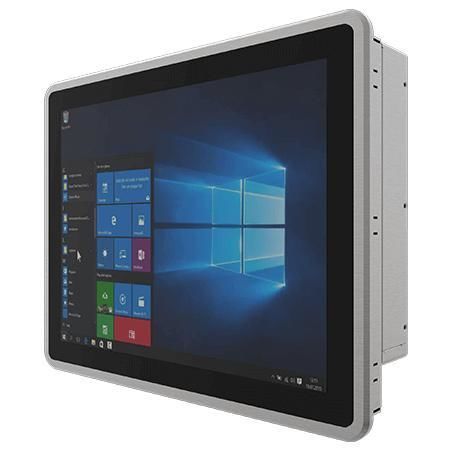

Multi-touch screen panel PC R15IT3S-PPC3

PCAP capacitive touch screen15"1024 x 768

Overview Winmate R15IT3S-PPC3 is a 15" PP Series HMI Panel PC for machine control, factory automation and operator interfaces. It integrates an 11th Gen Intel® Core™ i5-1135G7 processor with fanless cooling, a projected capacitive (PCAP) multi-touch display, front IP65 protection and an aluminum die-cast metal housing for industrial use.

Key features

• 15" LCD with projected capacitive multi-touch (PCAP)
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless design for low power and silent operation
• Front IP65 — dust-tight and protected against water jets
• Aluminum die-cast housing and slim, true-flat front
• Rich I/O: USB 3.2, serial (RS232/422/485), 2 x 2.5G LAN, optional HDMI, audio, M.2 expansion
• Typical applications: operator HMI, machine control, room booking, access control, info display

Product highlights

• True-flat front and slim bezel for easy cleaning and panel integration
• PCAP multi-touch for multi-touch gestures and precise input
• Front IP65 rating suitable for harsh industrial environments
• Expandability: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• TPM 2.0 and options for Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04

Certifications CE, FCC

Specifications

• Display — Size: 15.0 inches; Resolution: 1024 x 768; Brightness: 300 nits; Contrast: 2000:1; View Angles: 88/88/88/88; Active Area: 304.1 x 228.1 mm
• Processor — Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory — 4 GB (default); options: 8 GB / 16 GB / 32 GB
• Storage — 128 GB SSD (default); options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet — 2 x Intel® 2.5G LAN (RJ45)
• Security — TPM 2.0
• OS (optional) — Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 22.04
• Wireless — WLAN/BT optional via M.2 2230 E-Key
• Mechanical — Dimensions: 367 x 291 x 73.8 mm; Cut-out: 360 x 261 mm; Weight: 4.8 kg; Mounting: panel mount (default), VESA optional
• Environment — Operating Temp: 0°C to 50°C; Humidity: 10%–90% RH non-condensing; Storage Temp: -10°C to 60°C
• Power — Input: 12 V DC, 2.5φ DC jack; Adapter: 12 V 120 W (accessory)
• I/O — USB: 2 x USB3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; Video: 1 x HDMI 2.0 (optional); Audio: 2 x Speaker
• Indicators & Controls — Power LED, Storage LED, Brightness knob, Power and Reset buttons
