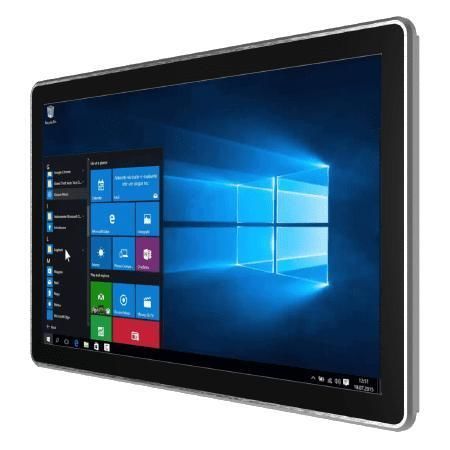

Multitouch screen panel PC W22IP7T-PPA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
The Winmate W22IP7T-PPA3 is a 21.5-inch HMI Panel PC for machine control, factory automation and operator HMI. It houses an Intel® Pentium® Apollo Lake N4200 (1.10 GHz, up to 2.5 GHz) in a fanless aluminum die-cast enclosure with front IP65 protection for dust and water resistance. Intended for industrial buyers, OEMs and system integrators requiring stable hardware integration and long-term availability.

Key Features

• 21.5-inch 1920 x 1080 display with Projected Capacitive (PCAP) multi-touch
• Intel® Pentium® Apollo Lake N4200, 1.10 GHz (burst up to 2.5 GHz)
• Fanless cooling and low power consumption
• Front panel IP65 water and dust proof
• Aluminum die-cast housing with slim true-flat design
• Room booking, access control and room information display ready

Product Highlights

• True flat surface and slim profile for easy cleaning and industrial integration
• PCAP multi-touch for responsive onscreen operation
• Rich I/O for industrial IoT connectivity (serial, USB, LAN, video, audio)
• Robust metal enclosure suitable for demanding environments

Certifications

• CE
• FCC

Technical specifications

• Display: 21.5 inches, Projected Capacitive Multi Touch Screen, 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 476.64 x 268.11 mm
• Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel (non-ECC) SO-DIMM, up to 16 GB
• Storage: 128 GB SSD (default); options: 256 GB, 512 GB, 1 TB; optional 2 x SATA III for 2.5" SSD/HDD (RAID optional)
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 20.04
• WLAN / BT: optional support
• Mechanical Dimension: 533 x 324 x 78 mm
• Cut out: 504 x 304 mm
• Weight: 7.2 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Aluminum die-cast metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• USB Ports: 4 x USB 3.2 Gen1 Type-A
• Serial Ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP 1.2 (default); optional 1 x HDMI 1.4; optional 1 x VGA
• Audio: 1 x Mic in, 1 x Line out, 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA III), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Indicators: LED power, LED storage
• Brightness Knob: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, Din4 pin connector
• Power Adapter: 12V 84W
• Accessories: AC 100~240V to DC adapter, power cord, VESA screws, mounting clips
