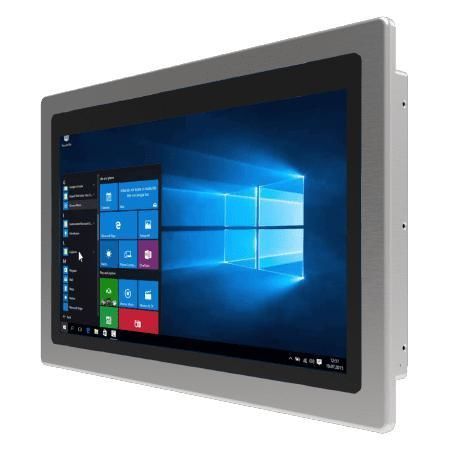

Multitouch screen panel PC W15IT7T-PPA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15IT7T-PPA4 is a 15.6-inch PP Series HMI Panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI applications. It features a 1920 x 1080 projected capacitive multi-touch display, front IP65 protection, multiple display interfaces, extensive I/O and an industrial-grade metal housing for reliable operation in production environments.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro) options
• 15.6" Full HD display (1920 x 1080) with 300 nits brightness
• Projected capacitive (PCAP) multi-touch screen
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Rich I/O: serial ports, 4 x USB 3.2 Gen ports, Gigabit + 2.5 Gigabit LAN, audio, DP/HDMI
• Front panel IP65 for dust and splash protection
• Aluminum die-cast enclosure and fanless cooling
• 12V DC single-voltage power input

Product Highlights and Advantages

• Flat surface & slim design: True-flat front and slim bezel for easy cleaning and integration into control panels.
• Accurate PCAP multi-touch: Responsive multi-touch for operator interaction and gesture control.
• Front IP65 protection: Dust-tight front and splash resistance suitable for harsh factory conditions.
• Extensive I/O for IoT connectivity: Serial, USB, LAN, video and audio interfaces facilitate integration with controllers, sensors and networks.
• Industrial build: Aluminum housing and robust mechanical design for long-term reliability in automation and OEM systems.

Certifications

• CE
• FCC

Technical specifications

• Model: W15IT7T-PPA4
• Brand: Winmate
• Display size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel brightness: 300 nits
• Contrast ratio: 800:1
• Viewing angles: 85°/85°/85°/85°
• Active area: 344.16 x 193.59 mm
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz); optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; options 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Dimensions (W x H x D): 415 x 275 x 72 mm
• Cut out: 374.2 x 238 mm
• Weight: 3.9 kg
• Mounting: Panel mount (default); VESA optional
• Enclosure: Aluminum die-cast metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• USB ports: 4 x USB 3.2 Gen (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP 1.4 (default), HDMI 2.0 optional
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16 physical, x4 signal)
• Indicators & controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Power input: 1 x 12V DC Din4 pin connector; adapter 12V 120W (recommended)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Certifications: CE, FCC
