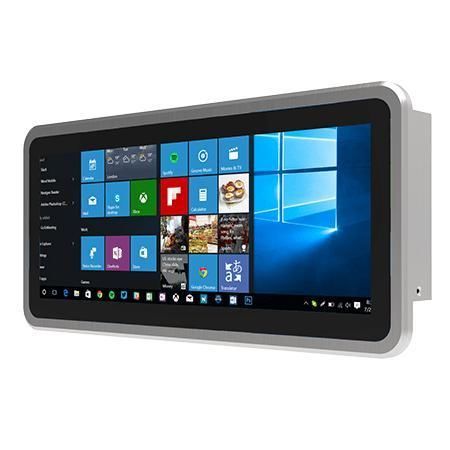

Multitouch screen panel PC W12IE3S-PPB1

PCAP capacitive touch screen1000 nits12.3"

Overview
The Winmate W12IE3S-PPB1 is a 12.3-inch HMI Panel PC from the PP series, engineered for machine control, factory automation and operator HMI tasks. It pairs a 1920×720 PCAP multi-touch display with a fanless thermal design, front IP65 protection and dual Gigabit Ethernet to support industrial integrations and continuous operation.

Key features

• 12.3-inch 1920×720 PCAP multi-touch panel
• Front IP65 protection (water and dust resistant)
• Dual Intel® Gigabit Ethernet ports
• Fanless cooling and ultra-low power consumption
• Metal/aluminum enclosure with panel and VESA mounting

Enhanced interaction with PCAP multi-touch
The projected capacitive multi-touch panel supports precise touch detection and multi-gesture operations (zoom, pan, gesture controls), improving operator efficiency for complex HMI screens and data entry.

Front IP65 protection for harsh environments
Front IP65 rating protects the display against splashes and dust ingress, enabling installation on factory floors, machine enclosures and outdoor-facing control panels where splash and particulate exposure occur.

Rugged fanless design and housing
Aluminum/metal housing combined with fanless thermal management reduces moving parts and ingress points, enabling quieter operation and lower maintenance in dusty or debris-prone environments.

Networking and expansion
Dual Gigabit Ethernet ports deliver redundancy and high-speed connectivity. Optional WLAN/BT and expansion via mPCIe / mini PCIe slots allow flexible network and peripheral configurations for OEM and system integrators.

Applications

• Machine control panels
• Factory automation and process monitoring
• Embedded HMI for OEM systems and system integrators

Technical specifications

• Model: W12IE3S-PPB1
• Brand: Winmate
• Display: 12.3 inches, 1920 x 720, PCAP multi-touch, 1000 nits, 1000:1 contrast
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz default); optional N6210
• Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB default (options: 8GB, 16GB)
• Storage: M.2 2242 B-key 128GB default (up to 512GB optional); optional SATA III for 2.5" HDD/SSD up to 1TB
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Ubuntu 22.04
• WLAN/BT: optional (mPCIe / mini PCIe)
• USB: 1 x USB3.2 Gen1 Type-A, 1 x USB2.0 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: HDMI 1.4 (optional)
• Audio: 2 x Speaker
• Indicators/Controls: LED power, LED storage, brightness knob, power and reset buttons
• Power: 12V DC input, adapter 12V 50W
• Dimensions: 338.3 x 159.8 x 56.5 mm; Cut-out: 240 x 165 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Metal / Aluminum
• Cooling: Fanless
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C
• Front IP rating: IP65
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
