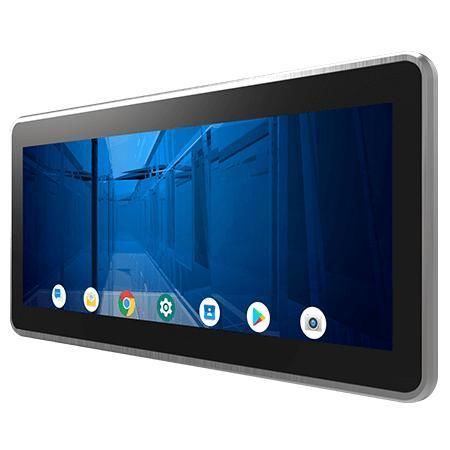

Multitouch screen panel PC W15IM3S-PPB2

PCAP capacitive touch screen14.9"Arm® Cortex®-A53 Quad-core

Overview
Winmate W15IM3S-PPB2 is a 14.9-inch PP Series HMI Panel PC designed for machine control, factory automation and operator HMI applications. It features a 14.9" 1920 x 720 projected capacitive multitouch display, ARM A53 Quad Core 2.0 GHz processor, front IP65 protection, aluminum housing and fanless design. The product ships with Android (default) and offers optional Linux distributions for embedded applications.

Key features

• 14.9" 1920 x 720 panel with projected capacitive multitouch
• ARM A53 Quad Core 2.0 GHz CPU
• Front IP65 water and dust protection
• Aluminum housing and fanless design
• Use cases: room booking schedule, access control, room information display
• Supports Android (default) and optional Linux distributions (Yocto, Ubuntu Server)

Applications
Suitable for industrial automation operator panels, machine control, interactive kiosks, digital signage and room management terminals. Front IP65 protection and metal housing suit demanding environments where dust or splashes may occur.

Certifications

• CE
• FCC

Technical specifications

• Model: W15IM3S-PPB2
• Manufacturer: Winmate
• Display — Size: 14.9 inches
• Display — Type: Projected Capacitive Multi Touch
• Display — Resolution: 1920 x 720
• Display — Panel Brightness: 950 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 85/85/85/85
• Display — Active Area: 355.68 × 133.38 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (upgradeable to Android 13) by default; optional Linux Yocto 5.15.47 with Qt 5.15; optional Linux Ubuntu Server 22.04
• WLAN / Bluetooth: optional
• Mechanical — Dimension: 400.2 × 187.6 × 59 mm
• Mechanical — Cut out: 378.1 × 164.6 mm
• Mechanical — Mounting: Panel mount; VESA mount
• Mechanical — Enclosure: Metal housing (aluminum)
• Mechanical — Cooling: Fanless design
• IO Ports — USB: 2 × USB 2.0 Type A; 1 × Micro USB 2.0 OTG
• IO Ports — Serial: 1 × RS232/422/485 (default RS232)
• IO Ports — LAN: 1 × LAN 10/100/1000 Mbps
• IO Ports — Video: 1 × Micro HDMI output (optional)
• IO Ports — Audio: 2 × speaker (optional)
• IO Ports — SD Card Slot: 1 × Micro SD card slot (max 32 GB)
• Environment — Operating Humidity: 10% to 90% RH, non‑condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -20°C to 60°C
• Environment — Shock: MIL‑STD‑810H Method 516.8 Procedure I
• Environment — Vibration: MIL‑STD‑810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Control — Button: 1 × Power Button (optional)
• Power — Power Rating: 12V DC with terminal block
• Power — Adapter: 12V 50W (accessory)
• Accessory (included/available): 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
