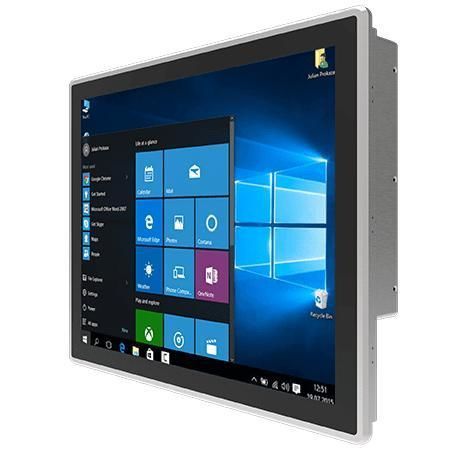

Multitouch screen panel PC R17IT3S-PPM1

PCAP capacitive touch screen17"1280 x 1024

Overview
Winmate R17IT3S-PPM1 is a 17-inch PP Series HMI Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). It is engineered for machine control, factory automation and operator HMI applications where a true-flat front, fanless low-power operation and front IP65 protection are required.

Key features

• 17-inch TFT with projected capacitive (PCAP) multi-touch
• Intel® Core™ i5-1135G7 processor
• Fanless cooling and ultra-low power design
• Front IP65 water and dust protection
• Die-cast aluminum housing for corrosion resistance
• Rich I/O for industrial IoT integration (serial, USB, LAN, video, audio)

Certifications

• CE
• FCC

Product highlights and usage
The PP Series offers a true-flat, slim design that simplifies cleaning and reduces dust accumulation. PCAP multi-touch provides precise, multi-finger gesture support for operator interfaces. Front IP65 protects against dust ingress and water splashes for demanding shop-floor environments. Robust metal enclosure and fanless design enable reliable, low-maintenance operation in industrial automation, machine control, kiosks, access control and digital signage.

Detailed features

• Real flat surface and slim profile for panel integration and maintenance
• Projected capacitive multi-touch for accurate touchscreen control and gestures
• Front IP65 rating for protection in harsh environments
• Comprehensive I/O: serial ports, 2 x USB3.2, 2 x 2.5G LAN, audio, optional HDMI
• M.2 expansion slots for NVMe SSD and Wi‑Fi module; TPM 2.0 security option

Technical specifications

• Display — Size: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1
• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4GB default; optional 8GB / 16GB / 32GB
• Storage: 128GB SSD default; optional up to 4TB; 1 x SATA III for 2.5" drive (optional)
• Ethernet: 2 x Intel® 2.5G LAN; USB: 2 x USB3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 + 1 x RS232; Video: HDMI 2.0 optional
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Dimensions: 393 x 325 x 77 mm; Cut out: 373 x 305 mm; Weight: 5.9 kg
• Mounting: Panel mount default; VESA optional; Enclosure: Aluminum die-cast
• Environment: Operating 0°C to 50°C, 10%–90% RH non-condensing; Front IP65
• Power: 12V DC input; Adapter 12V 120W
• Accessories: AC/DC adapter 100–240V, power cord, VESA screws, mounting clips
